Description

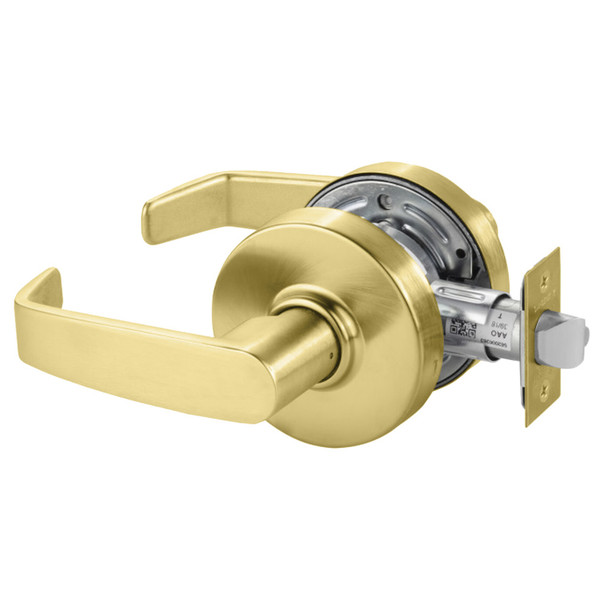

The Sargent 28-7U15 LL is a key-in-lever lock built for standard-duty commercial use in public buildings, medical offices, hotels, and government facilities. It exceeds ANSI/BHMA A156.2 standards for cycling and durability, making it ideal for interior and exterior doors that demand reliable security and long-term performance in high-traffic environments.
This lock fits 1-3/4" thick doors with a 2-3/4" backset (alternate configurations available). It features a brass 6-pin cylinder in LA keyway, supplied with two nickel silver keys, and supports master keying and grand master keying options. Multiple finishes and lever designs (B, L, P non-handed; G, Y Coastal Series handed) ensure compatibility with your door prep. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and configuration assistance.
Specifications
- Door Thickness: 1-3/4" (44mm) standard; 1-3/8" (35mm) available
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) available
- Latch Throw: 1/2" (13mm)
- Cylinder: Brass, 6-pin, LA keyway
- Keys: Two nickel silver keys included
- Front Plate: 2-1/4" x 1-1/8" (57mm x 29mm) standard
- Strike: Wrought brass or stainless steel; 2-3/4" curved lip standard
- Housing: Steel, zinc dichromate finish
- Lever Designs: B, L, P (non-handed); G, Y Coastal Series (handed)
- Available Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Standard: ANSI A115.2; 160 prep available
- Rating: ANSI/BHMA A156.2 compliant
