Description

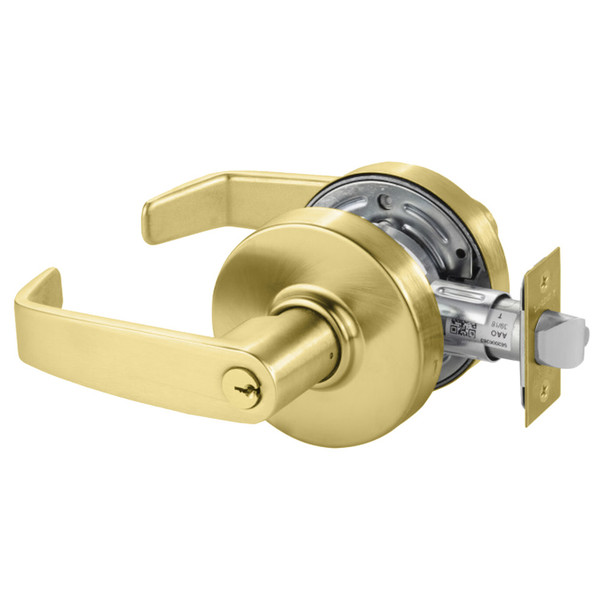

The Sargent 28-7G05 LL is a key-in-lever lock built for standard duty commercial use in public buildings, medical offices, hotels and government facilities. It exceeds ANSI/BHMA A156.2 durability standards and features a brass latch with 1/2 inch throw, making it ideal for interior and exterior doors requiring reliable keyed access control.
This lock accommodates 1-3/4 inch thick doors standard (1-3/8 inch optional) with 2-3/4 inch backset standard (2-3/8 inch optional). It comes with two nickel silver keys, a 6-pin brass cylinder in LA keyway, and can be master keyed or grand master keyed. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for help selecting the right hand, finish and strike configuration for your project.
Specifications
- Door Thickness: 1-3/4 inch standard, 1-3/8 inch optional
- Backset: 2-3/4 inch standard, 2-3/8 inch optional
- Latch Throw: 1/2 inch brass
- Cylinder: 6-pin brass, LA keyway
- Keys Included: Two nickel silver
- Front Plate: 2-1/4 inch x 1-1/8 inch standard or 2-1/4 inch x 1 inch optional
- Strike Options: 2-3/4 inch curved lip standard, 4-7/8 inch curved lip or 2-1/4 inch full lip
- Lever Designs: B, L, P non-handed; G, Y Coastal Series handed
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D
- Housing: Steel, zinc dichromate
- Front and Strike: Wrought brass or stainless steel
- Door Prep: ANSI A115.2 standard, 160 prep optional
