Description

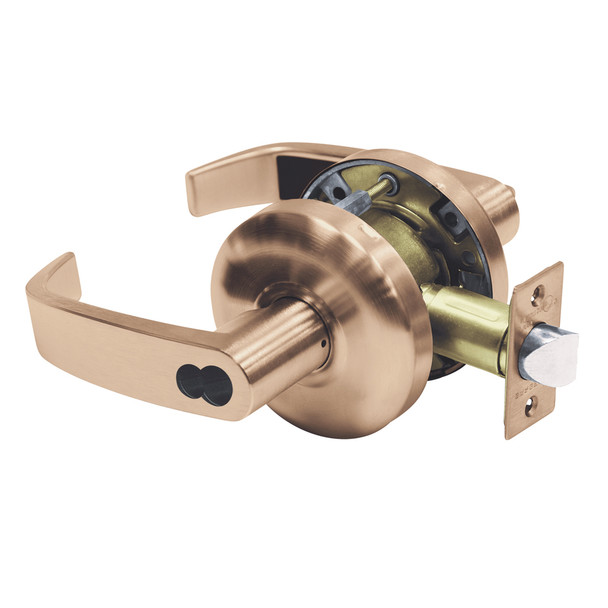

The Sargent 6500 Series is a Grade 2 key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 standards. Designed for standard-duty applications on 1-3/8" to 1-3/4" thick doors, it combines wrought brass and stainless steel construction with universal hand operation, making it ideal for offices, schools, and commercial facilities requiring reliable keyed access control.
This lock ships with a 600 Curved Lip strike in brass or stainless steel, a 6-pin LA keyway cylinder, and two nickel silver keys. The 2-3/4" backset is standard; 2-3/8" is available. Installation follows ANSI A115.2 (161) Modified specifications with a 4-1/2" minimum stile. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for finish selection, strike options, keying assistance, and expert guidance from an authorized Sargent dealer.
Specifications
- Door thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Standard backset: 2-3/4" (70mm); optional 2-3/8" (60mm)
- Cylindrical housing: Steel, zinc dichromate finish
- Front: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Strike: 600 Curved Lip, brass or stainless steel standard; 808 ANSI or 505 Full Lip available
- Hand: Universal, not handed
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway standard
- Keys supplied: Two, nickel silver
- Available finishes: 3, 4, 10, 10B, 26, 26D (no split finish)
- Door prep: ANSI A115.2 (161) Modified
- Minimum stile: 4-1/2" (114mm)
- Grade: ANSI A156.2 Series 4000 Grade 2
