Description

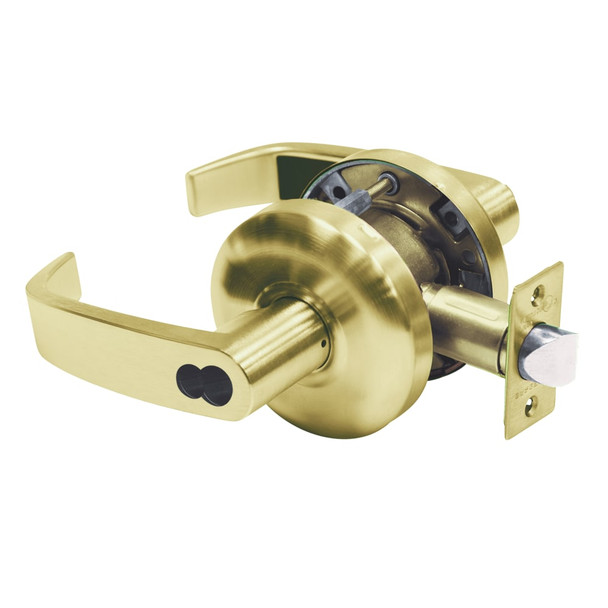

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors, it delivers reliable keyed access control for interior and exterior applications on doors 1-3/8" to 1-7/4" thick with a universal hand design that fits any door orientation.
This lock accepts ANSI A115.2 (161) modified door prep and installs in standard 2-3/4" backset cavities (2-3/8" optional). Sargent locks are backed by E.D. Locks' expert team: contact sales@edlocks.com or call 1-877-207-6067 for specification matching, keying coordination, and free guidance on finish selection and strike compatibility to ensure proper fit and function.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylindrical Housing: Steel zinc dichromate finish
- Front Plate: Wrought brass and stainless steel; 2-1/4" x 1-1/8"
- Latch: Brass 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway standard
- Keys: Two nickel silver
- Hand: Universal, not handed
- Strikes: 600 curved lip (brass or stainless standard), 808 ANSI curved lip, 505 full lip available
- Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) modified
- Minimum Stile: 4-1/2"
