Description

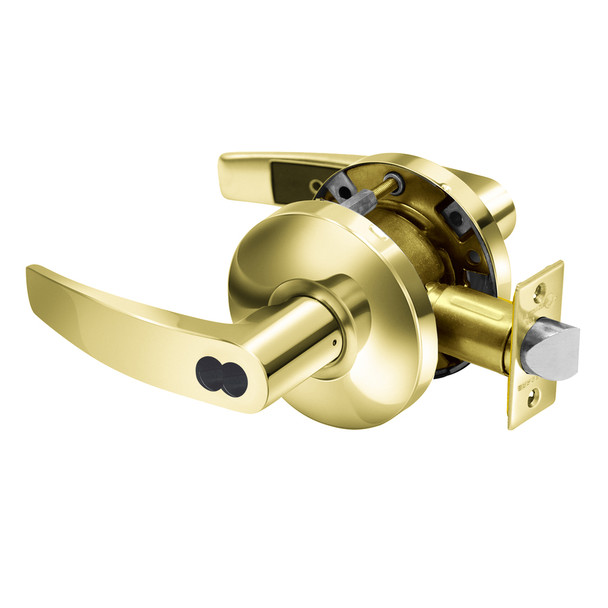

The Sargent 6500 Series is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors, it provides reliable keyed access control for single or multi-door applications where moderate security is required.
Fits doors 1-3/8" to 1-3/4" thick with standard 2-3/4" backset (2-3/8" optional). Universal hand installation, brass latch, six-pin cylinder with LA keyway, and choice of strike types ensure flexible installation. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish selection, keying, and compatibility with your door frame.
Specifications
- Brand: Sargent
- Model: 2870-65G04 KB 3
- Lock Type: Key-In-Lever Cylindrical
- Door Thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Standard Backset: 2-3/4" (70mm); Optional: 2-3/8" (60mm)
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway
- Hand: Universal (not handed)
- Keys Supplied: Two nickel silver
- Strike Options: 600 Curved Lip (standard brass or stainless), 808 ANSI Curved Lip (28-prefix), 505 Full Lip (14-prefix)
- Available Finishes: 3, 4, 10, 10B, 26, 26D
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile Width: 4-1/2"
- Standard: ANSI A156.2 Series 4000 Grade 2
