Description

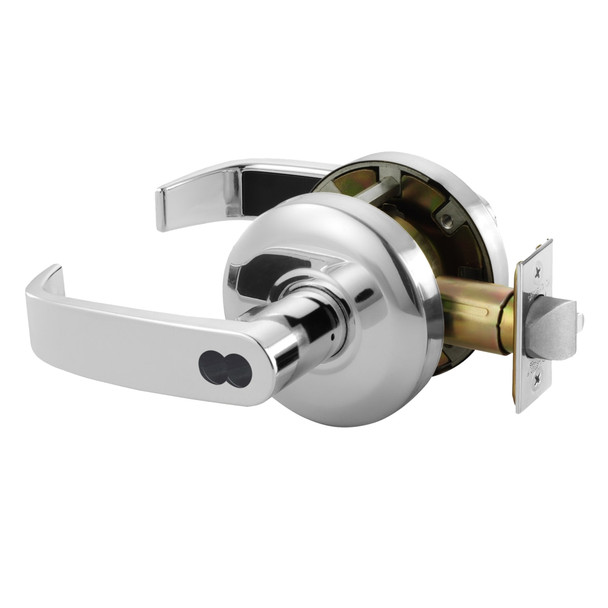

The Sargent 6500 Series is a standard duty key-in-lever lock that exceeds ANSI A156.2 Grade 2 requirements. Designed for commercial and institutional doors, it combines universal hand operation with durable wrought brass and stainless steel construction. Ideal for facilities seeking reliable, cost-effective access control on 1-3/8" to 1-3/4" thick doors.
This lock fits ANSI A115.2 prepared openings with a 4-1/2" minimum stile and features a 6-pin brass cylinder, 1/2" throw latch, and choice of strike styles (600 Curved Lip standard). As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right backset and finish for your application.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" (35-44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front Plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm)
- Cylinder: Brass, 6-pin, LA keyway standard
- Latch: Brass, 1/2" (13mm) throw
- Hand: Universal, not handed
- Strike: 600 Curved Lip (Brass or Stainless), 808 ANSI Curved Lip, 505 Full Lip available
- Keys: Two nickel silver
- ANSI Grade: A156.2 Series 4000 Grade 2
- Door Prep: ANSI A115.2 (161) Modified, 4-1/2" minimum stile
- Finishes: 3, 4, 10, 10B, 26, 26D (No Split Finish)
