Description

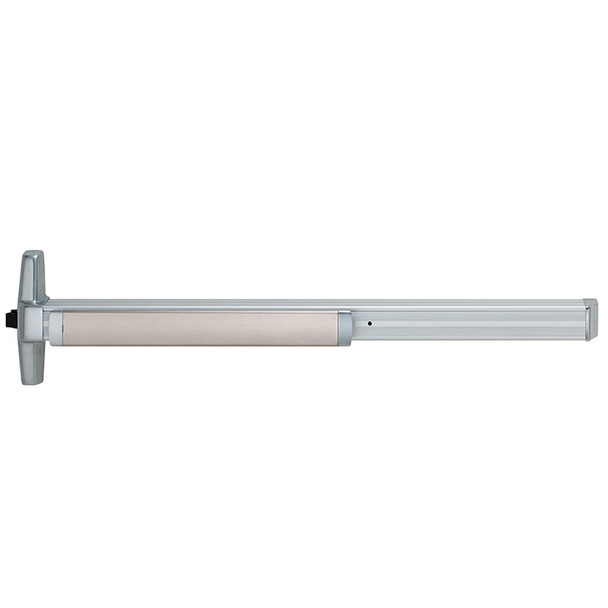

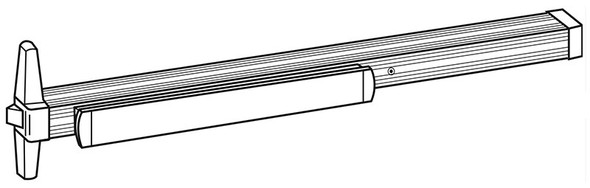

The Von Duprin 33AEO 3 26D is a UL-listed panic exit device engineered for single and double doors with mullions. Grade 1 ANSI A156.3 certified, it delivers reliable emergency egress for commercial facilities, healthcare, retail, and institutional buildings where code-compliant life safety hardware is non-negotiable.
This rim-mounted device accommodates door sizes 2'4" to 3' (711-914mm) and 2'10" to 4' (864-1219mm), and accepts various electric and monitoring options including latchbolt monitor switches, signal switches, and alarm kits. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert configuration advice, keying assistance, and authorized dealer support.
Specifications
- Brand: Von Duprin
- Model: 33AEO 3 26D
- Type: Panic Exit Device (Rim-mounted, Non-handed)
- Grade: ANSI A156.3 2014 Grade 1
- UL Listed: Yes
- Compatible Door Types: Single and double doors with mullion
- Door Sizes: 2'4" to 3' (711-914mm); 2'10" to 4' (864-1219mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Device Centerline: 39 13/16" (1011mm); 39 11/16" (1008mm) with mullion
- Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Pushbar Projection (Neutral): 3 13/16" (97mm)
- Pushbar Projection (Depressed): 3 1/16" (78mm)
- Dogging: Hex key dogging standard; CD cylinder or LD options available
- Strike: 1439 Dull Black
- Sex Bolts: 1 3/4" to 2 1/4" (44-57mm) for wood and metal doors
- Electric Options: LX latchbolt monitor, RX pushpad monitor, RX2 double pushpad monitor, SS signal switch, EL electric latch retraction, ALK alarm exit kit
- Optional Features: PN pneumatic latch retraction, GBK glass bead kit
