Description

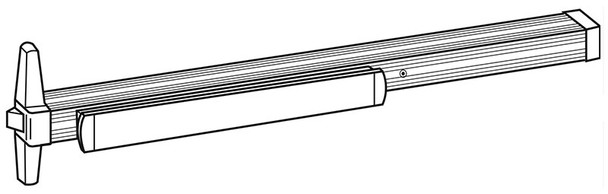

The Von Duprin 33AEO 3 is a Grade 1 panic exit device designed for single and double doors with mullion. Built to ANSI A156.3 2014 standards and UL listed, it provides reliable emergency egress for commercial buildings, retail spaces, and multi-tenant facilities. The grooved case mechanism offers durability and smooth operation under high-traffic conditions.
This rim-mounted device fits door sizes from 2'4" to 4' and includes a deadlocking latchbolt with standard hex key dogging. Optional electric latch retraction, alarm kits, signal switches, and latchbolt monitors are available to meet your specific safety requirements. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance and support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI A156.3 2014 Grade 1
- Certification: UL Listed
- Device Lengths: 3' (711-914mm) or 4' (864-1219mm) door widths
- Latch Bolt: Deadlocking, 3/4" throw
- Centerline Height: 39 13/16" from finished floor (39 11/16" with mullion)
- Center Case: 8 3/16" x 2 13/32" x 1 9/16"
- Mechanism Case: 2 1/4" x 2 1/4"
- Pushbar Projection: 3 13/16" neutral, 3 1/16" depressed
- Finish: US26 (Satin Chrome)
- Dogging: Hex key standard; CD or LD options available
- Strike: 1439 Dull Black
- Non-handed (except with SS signal switch option)
