Description

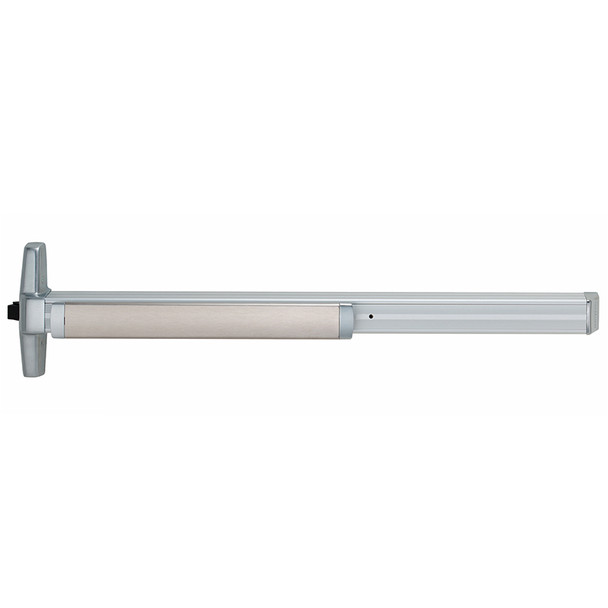

The Von Duprin 33AEO 3 US28 is a Grade 1 panic exit device designed for single and double doors with mullion support. Built to ANSI A156.3 2014 standards and UL listed, it solves the critical need for reliable emergency egress hardware in commercial and institutional facilities where code compliance and safety are non-negotiable.
This rim-mounted device fits door sizes 2'4" to 3' (711-914mm) and includes a deadlocking 3/4" latch bolt, standard hex key dogging, and optional electric latch retraction or alarm kits. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration assistance and free shipping on orders over $450. Contact sales@edlocks.com or call 1-877-207-6067 for application guidance.
Specifications
- Model: 33AEO 3 US28
- Grade: ANSI A156.3 2014 Grade 1
- UL Listed: Yes
- Device Length: 3' (711mm to 914mm door size)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Centerline Height: 39 13/16" (1011mm) from finished floor
- Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16"
- Pushbar Neutral Projection: 3 13/16" (97mm)
- Pushbar Depressed Projection: 3 1/16" (78mm)
- Dogging: Hex key standard; cylinder dogging optional
- Strike: 1439 Dull Black
- Optional Features: Electric latch retraction, signal switch, monitor switches, alarm exit kit
