Description

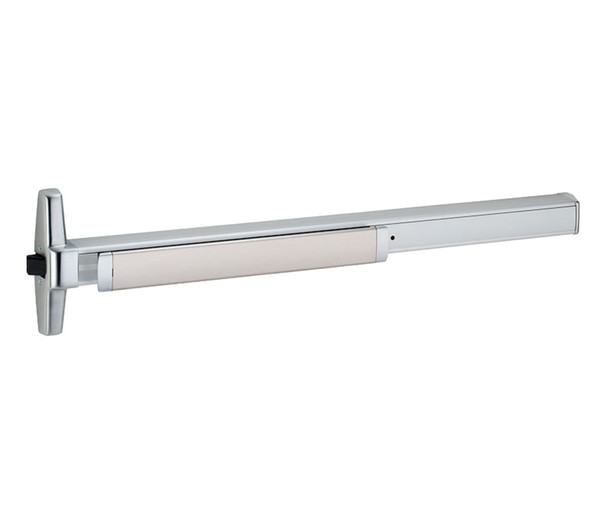

The Von Duprin 35A-L-DT-17 is a UL-listed panic exit device designed for single and double doors with or without mullions. This ANSI A156.3 Grade 1 rim-mounted hardware suits commercial facilities, schools, hospitals and other life-safety-critical applications requiring reliable emergency egress on doors as narrow as 1 3/4 inches.
The 35A fits door stiles from 2 4 to 3 feet and doors up to 4 feet wide, with a smooth mechanism case and hex key dogging standard. Compatible with wood and metal doors, this non-handed device (except with optional signal switch) installs easily with included sex bolts. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing, keying and installation guidance from an authorized Von Duprin dealer.
Specifications
- Brand: Von Duprin
- Model: 35A-L-DT-17 3 26D LHR
- UL Listed: Panic Exit Hardware
- Standard: ANSI A156.3 - 2001 Grade 1
- Minimum Door Stile Width: 1 3/4 inch
- Device Lengths: 2 4 to 3 feet (711mm to 914mm), 2 10 to 4 feet (864mm to 1219mm)
- Centerline Height from Floor: 39 13/16 inch (1011mm) or 39 11/16 inch with mullion (1008mm)
- Center Case Dimensions: 8 3/16 x 1 9/16 x 2 13/32 inches (208mm x 40mm x 62mm)
- Mechanism Case Dimensions: 2 1/4 x 2 1/4 inches (57mm x 57mm)
- Pushbar Neutral Projection: 3 13/16 inches (97mm)
- Pushbar Depressed Projection: 3 1/16 inches (78mm)
- Latch Bolt: Deadlocking, 3/4 inch (19mm) throw
- Finish: 26D
- Handed: LHR (Left Hand Reverse)
- Standard Dogging: Hex Key
