Description

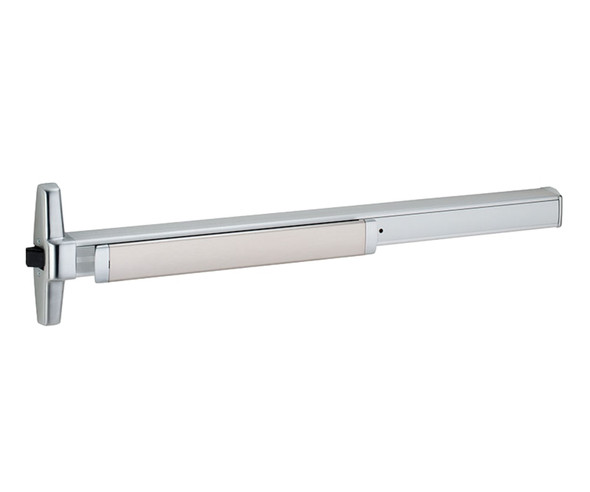

The Von Duprin 35ANL 3 is a Grade 1 UL-listed rim exit device designed for single and double doors with mullions. Built to ANSI A156.3-2014 standards, it provides dependable panic hardware for commercial facilities requiring reliable emergency egress control and ADA-compliant door operation.
Compatible with doors 28 to 48 inches wide and 80 to 96 inches tall, this non-handed device installs on the interior of the door frame using included sex bolts for wood and metal substrates. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and installation guidance tailored to your building code requirements.
Specifications
- Model: 35ANL 3 643E LHR
- Grade: ANSI A156.3-2014 Grade 1
- UL Listed for Panic Exit Hardware
- Device Centerline from Floor: 39 13/16 inch (1011 mm) or 39 11/16 inch with mullion (1008 mm)
- Center Case Dimensions: 8 3/16 inch x 1 9/16 inch x 2 13/32 inch (208 mm x 40 mm x 62 mm)
- Mechanism Case Dimensions: 2 1/4 inch x 2 1/4 inch (57 mm x 57 mm)
- Pushbar Neutral Projection: 3 13/16 inch (97 mm)
- Pushbar Depressed Projection: 3 1/16 inch (78 mm)
- Deadlocking Latch Bolt: 3/4 inch (19 mm) throw
- Compatible Door Widths: 28 to 48 inches (711 mm to 1219 mm)
- Fasteners: 1 3/4 inch to 2 1/4 inch sex bolts for wood and metal doors
- Non-handed (except with optional signal switch)
