Description

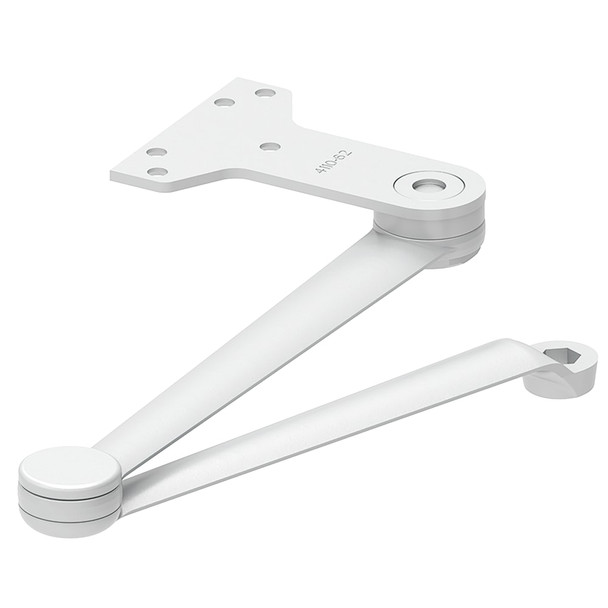

The LCN 4040XP-3049EDA is a heavy-duty door closer arm engineered for institutional and high-traffic applications. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and an innovative V-shield seal with 20% longer life. Built from cast iron, forged steel, and double heat-treated steel pinion for maximum durability and reliability in demanding environments.
This non-handed closer mounts on hinge side, top jamb, or with parallel arm bracket on either right or left swinging doors. It adjusts for interior doors to 5'0" and exterior doors to 4'0", meets ADA requirements, and is UL and cUL listed to ANSI A156.4 grade one. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and finish options including powder coat and corrosion-resistant primers.
Specifications
- Model: 4040XP-3049EDA RH
- Brand: LCN
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Adjustment: Up to 5'0"
- Exterior Door Adjustment: Up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm bracket
- Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Seal: V-shield with extended life
- Hand: Right (RH)
- Finish: US26 standard, optional powder coat and plated finishes
- Certifications: UL and cUL listed, ANSI A156.4 grade one
- ADA Compliant: Yes
- Accessories: Compatible with all 4040 accessories
