Description

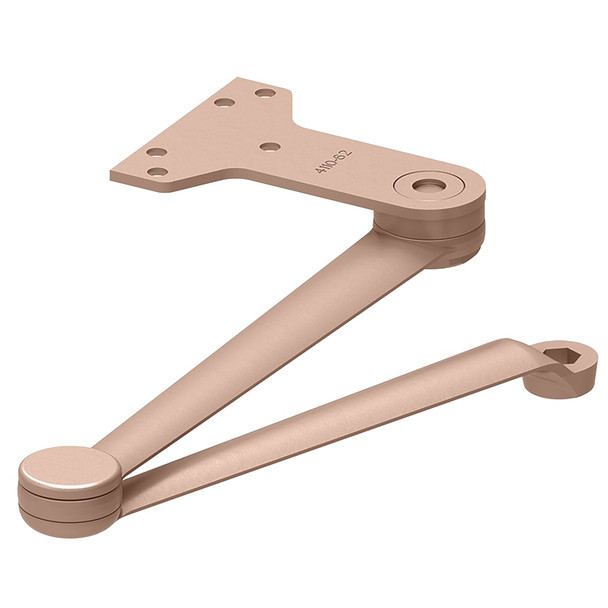

The LCN 4040XP-3049EDA is a heavy-duty door closer arm engineered for institutional and high-traffic facilities. It delivers 44% increased bearing load capacity, a stronger 3/4" pinion journal, and an enhanced V-shield seal rated 20% longer lasting. Ideal for demanding environments requiring durability and reliable performance.
This closer mounts on hinge side, top jamb, or parallel arm configuration for right or left swing doors. Compatible with interior doors to 5'0" and exterior doors to 4'0". As an authorized LCN dealer, E.D. Locks offers expert guidance on sizing, finishes, and ADA compliance. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for application assistance.
Specifications
- Brand: LCN
- Model: 4040XP-3049EDA RH
- Bearing load capacity: 44% increased over standard
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- Seal: V-shield with 20% longer life
- Interior door capacity: up to 5'0"
- Exterior door capacity: up to 4'0"
- Materials: Cast iron forged steel arm, double heat-treated steel pinion
- Fluid: All weather
- Handed: Non-handed
- Mounting: Hinge side, top jamb, or parallel arm (with PA bracket)
- Finish options: Standard powder coat, optional custom powder coat, optional plated finish on cover/arm/fasteners, optional SRI primer for corrosive environments
- Listings: UL and cUL listed, ANSI A156.4 Grade One certified
- Features: Fast Power Adjust, fast and accurate installation, ADA compliant options available
