Description

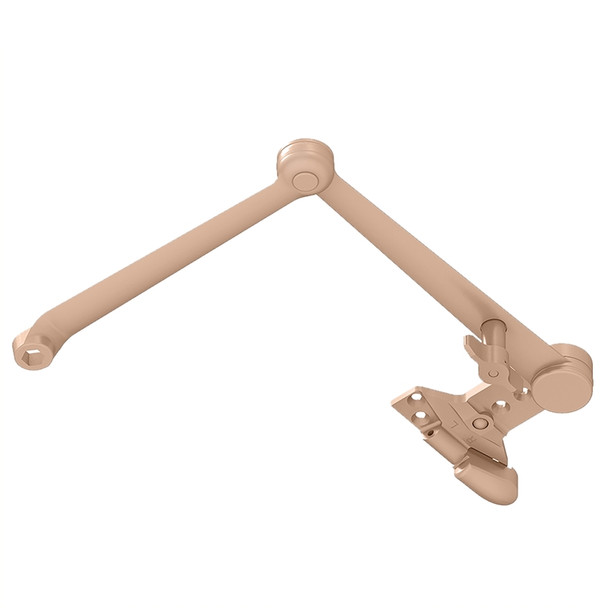

The LCN 4040XP-3049SCNS is a heavy-duty door closer arm built for institutional and high-traffic environments. Its XP (eXtra Protection) design features 44% increased bearing load capacity, a stronger 3/4" pinion journal, and an enhanced V-shield seal with 20% longer life. This non-handed closer delivers reliable performance in demanding applications.
Compatible with interior doors to 5'0" and exterior doors to 4'0", this closer mounts on the hinge side, top jamb, or parallel arm position for either swinging direction. Cast iron, forged steel, and double heat-treated components ensure durability. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on installation, finishing options, and ADA compliance requirements.
Specifications
- Brand: LCN
- Model: 4040XP-3049SCNS
- Finish: Light Bronze
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Capacity: up to 5'0"
- Exterior Door Capacity: up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm
- Hand: Non-handed
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid Type: All weather
- Features: V-shield seal, fast power adjust, fast and accurate installation
- Optional Finishes: Custom powder coat, plated finish, SRI primer for corrosive conditions
- Accessories: Compatible with all 4040 accessories
