Description
The LCN 4040XP-419 632 is a heavy-duty door closer engineered for institutional and high-traffic environments. It features 44% increased bearing load capacity, a 3/4" journal pinion, and a V-shield seal with 20% longer life. Non-handed design works on either swing, and the non-sized cylinder adjusts for interior doors to 5'0" and exterior doors to 4'0". Ideal for facilities demanding maximum durability and reliable performance.
This closer mounts on the hinge side, top jamb, or parallel arm bracket on right or left swinging doors. Cast iron body with double heat-treated steel pinion ensures lasting strength. UL and cUL listed per ANSI A156.4 grade one. Contact our team at sales@edlocks.com or 1-877-207-6067 for help selecting finishes, accessories, or installation guidance tailored to your project.
Specifications
- Brand: LCN
- Model: 4040XP-419 632
- Bearing load capacity: 44% increase over standard
- Pinion journal diameter: 3/4 inch
- Bearing width: 5/8 inch
- V-shield seal with extended life
- Interior door range: to 5 feet 0 inches
- Exterior door range: to 4 feet 0 inches
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All weather
- Handed: Non-handed
- Features: Fast Power Adjust, Fast & Accurate Installation
- Certifications: UL and cUL listed, ANSI A156.4 grade one

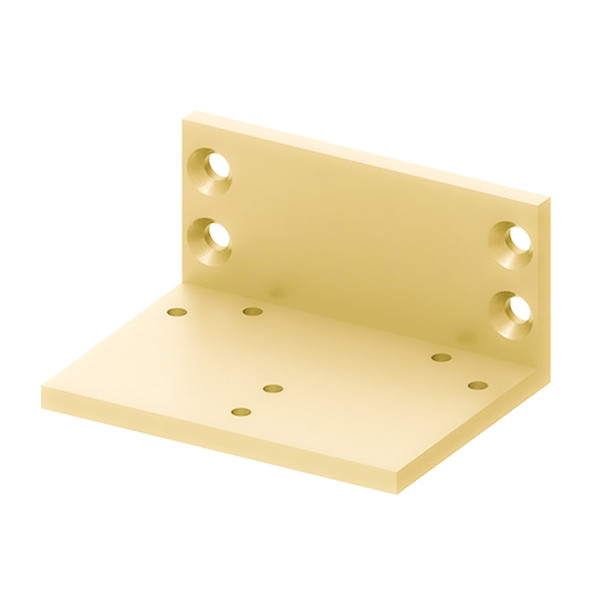

- Mounting options: Hinge side, top jamb, parallel arm with PA bracket
- Finish options: Standard or optional custom powder coat, optional plated finish, optional SRI primer for corrosive conditions
- Accessories: Compatible with all 4040 accessories
