Description

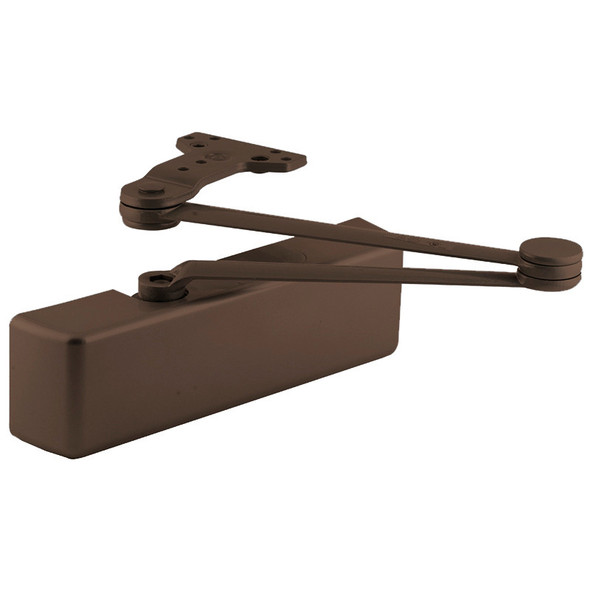

The LCN 4040XP-CUSH is a heavy-duty door closer engineered for institutional and high-traffic applications where durability is non-negotiable. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and an innovative V-shield seal with 20% longer life. Ideal for facilities managers and building owners who demand reliable performance in demanding environments.
This closer mounts on hinge side, top jamb, or parallel arm positions for both right and left swinging doors, accommodating interior doors to 5'0" and exterior doors to 4'0". It is UL and cUL listed, ANSI A156.4 grade one certified, and available with optional SRI primer for corrosive conditions. Contact an authorized E.D. Locks expert at sales@edlocks.com or 1-877-207-6067 for sizing assistance and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-CUSH
- Handing: Left Hand
- Finish: Dark Bronze with SRI Primer
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Seal Type: V-shield with 20% extended life
- Material: Cast iron body, forged steel arm, double heat treated steel pinion
- Features: Non-handed cylinder, LCN Fast Power Adjust, all-weather fluid
