Description

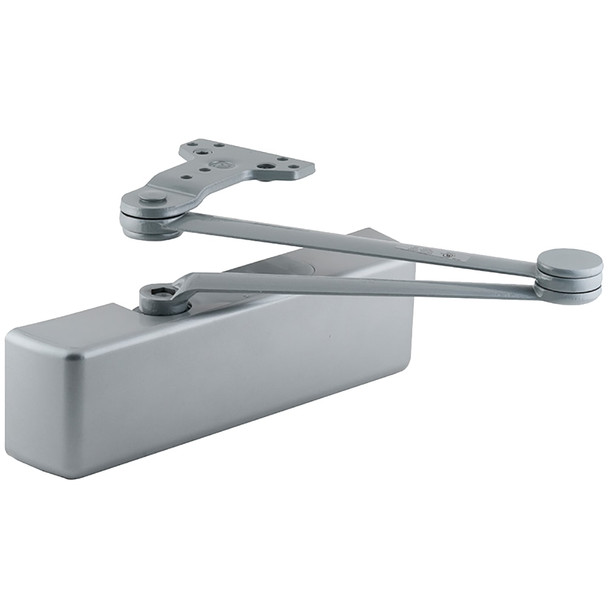

The LCN 4040XP-CUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It solves closing reliability challenges with 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and an enhanced V-shield seal for 20% longer life. Ideal for facilities demanding maximum durability and performance.
This left-hand closer mounts on hinge side, top jamb, or parallel arm configuration for doors up to 5'0" (interior) or 4'0" (exterior). It's UL/cUL listed, ANSI A156.4 grade one certified, and compatible with all 4040 accessories. For expert sizing, finish options (powder coat, plating, or SRI primer), and installation guidance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: LCN
- Model: 4040XP-CUSH
- Hand: Left Hand (LH)
- Finish: US26D (Satin Chrome)
- Bearing Load Capacity: 44% increased over standard
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal: V-shield with 20% extended life
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Max Door Width (Interior): 5'0"
- Max Door Width (Exterior): 4'0"
- Mount Options: Hinge side, top jamb, parallel arm
- Certifications: UL, cUL listed; ANSI A156.4 Grade One
- Installation: Fast & Accurate with LCN Fast Power Adjust
- Accessories: Compatible with all 4040 accessories
