Description

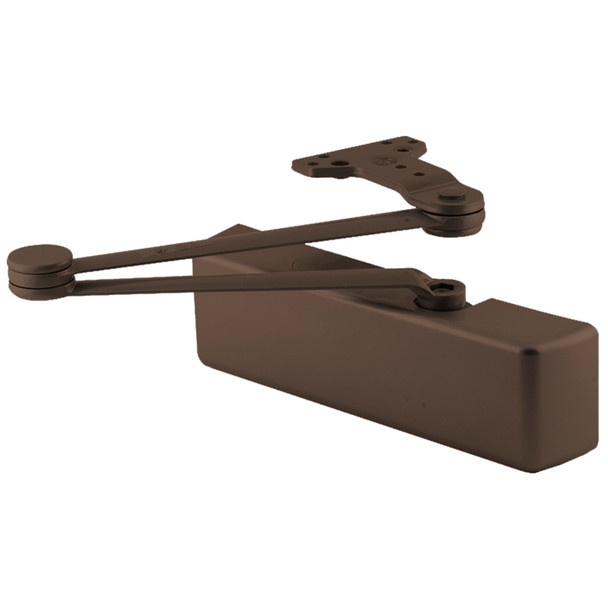

The LCN 4040XP-CUSH is a heavy duty door closer engineered for institutional and high traffic environments. With 44% increased bearing load capacity, the strongest pinion design ever, and a new V-shield seal with 20% longer life, this non-handed closer delivers superior durability and real world performance in demanding applications.
The 4040XP mounts on the hinge side, top jamb, or parallel arm position on right or left swinging doors, and adjusts for interior doors to 5'0" and exterior doors to 4'0". It is UL and cUL listed, ANSI A156.4 grade one certified, and available with optional SRI primer for corrosive environments. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish, and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-CUSH RH
- Finish: Dark Bronze with optional plating available
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Interior Door Adjustment: Up to 5 feet 0 inches
- Exterior Door Adjustment: Up to 4 feet 0 inches
- Mounting: Hinge side, top jamb, or parallel arm
- Handed: Non-handed
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Construction: Cast iron body, forged steel arm, double heat treated steel pinion
- Seal: V-shield with extended life
- Optional: SRI primer for corrosive environments, custom powder coat
