Description

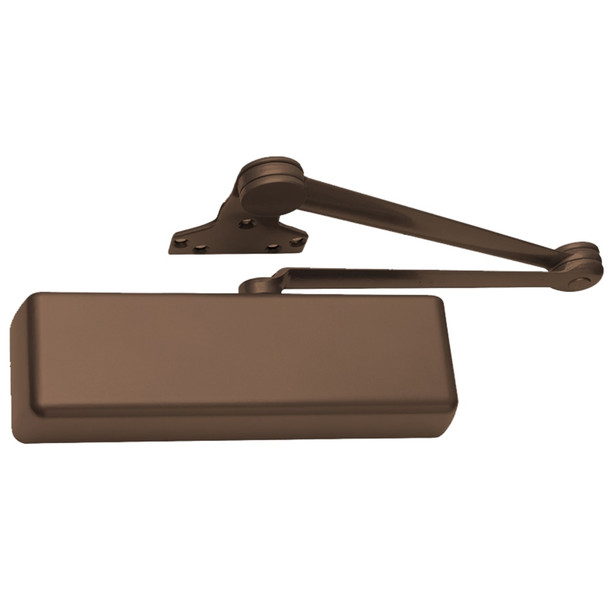

The LCN 4040XP-EDA is a heavy-duty commercial door closer engineered for high-traffic institutional environments, hospitals, schools, and demanding applications. Its 44% increased bearing load capacity, strongest pinion design, and enhanced V-shield seal deliver superior durability and reliability where doors see constant use.
This non-handed closer adjusts for interior doors up to 5'0" and exterior doors up to 4'0", mounting on hinge side, top jamb, or parallel arm configurations. It meets ADA requirements and is UL/cUL listed to ANSI A156.4 grade one. As an authorized LCN dealer, E.D. Locks provides expert installation guidance and finish options including SRI corrosion primer. Contact sales@edlocks.com or 1-877-207-6067 for sizing and specification assistance.
Specifications
- Brand: LCN
- Model: 4040XP-EDA
- Finish: Dark Bronze (SRI primer available)
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Material: Cast Iron body, Forged Steel arm, Double Heat Treated Steel pinion
- Fluid: All Weather
- Handed: Non-Handed
- Mount Options: Hinge side, top jamb, or parallel arm
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Features: Fast Power Adjust, Fast and Accurate Installation, V-shield seal
