Description

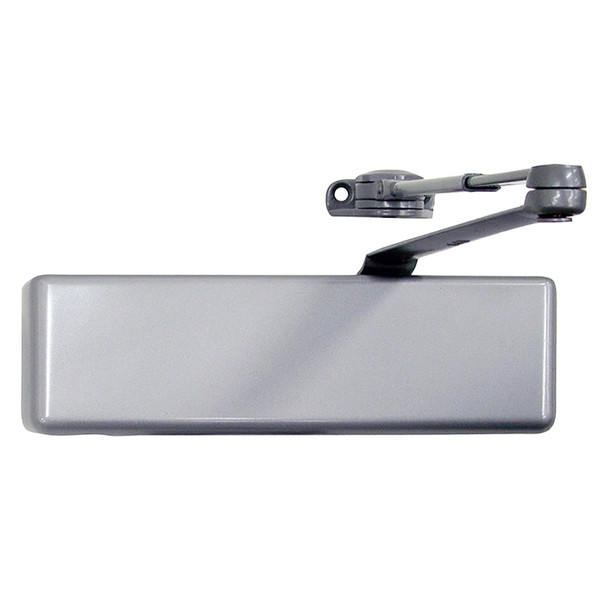

The LCN 4040XP-H is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It features a reinforced pinion with 3/4" journal diameter, 5/8" bearing width, and V-shield seals rated for 20% longer life. This closer handles demanding applications where durability and reliability are non-negotiable, ideal for schools, hospitals, and commercial facilities.
This left-hand closer mounts on hinge side, top jamb, or parallel arm and suits interior doors to 5'0" and exterior doors to 4'0". It's UL and cUL listed, ANSI A156.4 Grade One certified, and ADA-compliant. The non-handed cylinder is field-adjustable. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for application guidance and finish options including powder coat, plating, or SRI primer for corrosive environments.
Specifications
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Certifications: UL, cUL Listed; ANSI A156.4 Grade One
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- V-Shield Seal: 20% extended life rating
- Mounting Options: Hinge side, top jamb, or parallel arm compatible
