Description

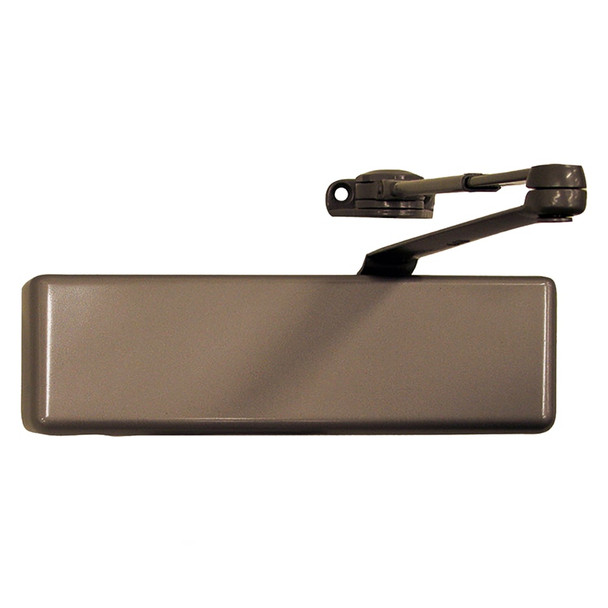

The LCN 4040XP-H is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic facilities. It delivers 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a reinforced V-shield seal with 20% longer life. Ideal for demanding commercial and institutional applications requiring durability and reliability.
This non-handed closer installs on interior doors to 5'0" and exterior doors to 4'0", mounting on hinge side, top jamb, or parallel arm configuration. UL and cUL listed to ANSI A156.4 grade one, it accommodates ADA requirements and pairs with all 4040 accessories. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and finish options including powder coat, plating, or SRI primer for corrosive environments.
Specifications
- Model: 4040XP-H STAT
- Brand: LCN
- Type: Surface-mounted door closer
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Non-Handed: Yes
- Mount Options: Hinge side, top jamb, parallel arm
- Certifications: UL, cUL listed; ANSI A156.4 Grade One
- Seal: V-shield with extended life
- Construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Features: Fast Power Adjust, fast and accurate installation, optional custom powder coat, optional plated finish, optional SRI primer
