Description

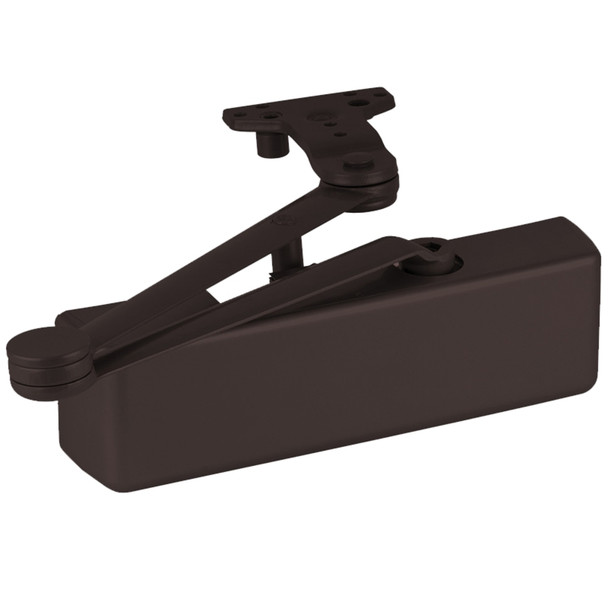

The LCN 4040XP is a heavy-duty surface door closer engineered for institutional and high-traffic facilities. With 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a reinforced V-shield seal with 20% longer life, this closer delivers superior durability in demanding applications.
The 4040XP mounts on hinge side, top jamb, or parallel arm configuration for either right or left swinging doors. It adjusts for interior doors to 5'0" and exterior doors to 4'0". An authorized E.D. Locks dealer can help you select the right finish, confirm ADA compliance, and ensure proper installation. Contact us at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Brand: LCN
- Model: 4040XP-HCUSH STAT
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Mount Options: Hinge side, top jamb, parallel arm
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Handed: Non-handed
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Certifications: UL and cUL listed, ANSI A156.4 grade one
- Features: V-shield seal, LCN Fast power adjust, fast and accurate installation
- Finish Options: Standard or custom powder coat, optional plated finish on metal cover/arm/fasteners, optional SRI primer for corrosive environments
