Description

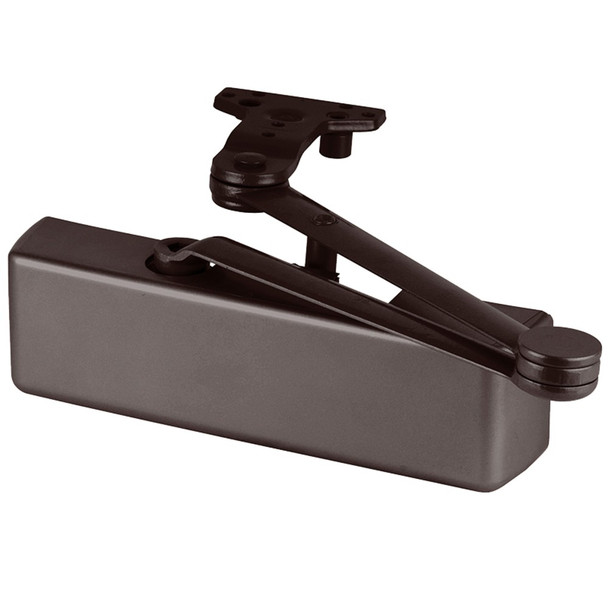

The LCN 4040XP-HCUSH is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial settings. It features 44% increased bearing load capacity, a 3/4" journal diameter pinion, and V-shield seals rated 20% longer-lasting than standard models. This non-handed closer solves reliability challenges in demanding environments where durability and consistent performance are essential.
Compatible with interior doors to 5'0" and exterior doors to 4'0", the 4040XP mounts on hinge side, top jamb, or parallel arm configurations for either right or left swing. UL and cUL listed to ANSI A156.4 Grade One, it meets ADA requirements. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert mounting guidance, finish options, and corrosion-resistant SRI primer availability.
Specifications
- Brand: LCN
- Model: 4040XP-HCUSH
- Finish: Dark Bronze (DKBRZ)
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: up to 5'0"
- Exterior Door Range: up to 4'0"
- Mounting: Hinge side, top jamb, or parallel arm (PA bracket)
- Handed: Non-Handed
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Material: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Special Feature: V-shield Seal with 20% Extended Life
- Optional: SRI Primer for Corrosive Conditions, Custom Powder Coat, Plated Finish
