Description

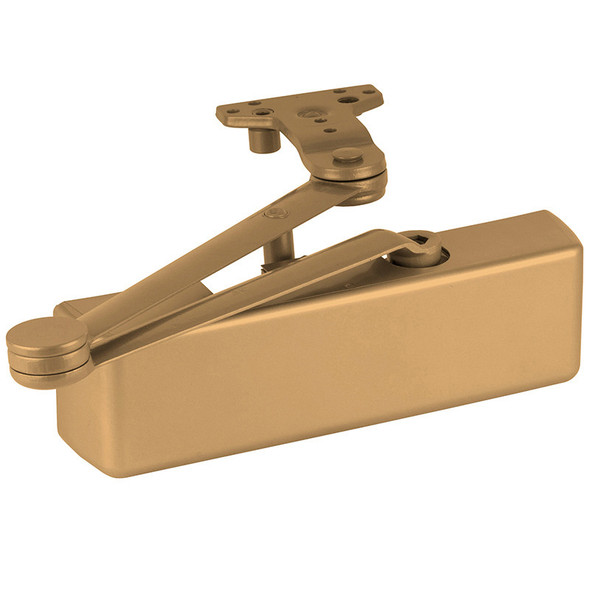

LCN's 4040XP-HCUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic applications where durability is critical. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a reinforced V-shield seal with 20% longer life. Ideal for facilities managing demanding door cycles daily.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configuration for right or left swinging doors, and adjusts to interior doors up to 5'0" and exterior doors up to 4'0". UL and cUL listed under ANSI A156.4 Grade One, it comes powder coat standard with optional plated finishes and SRI primer for corrosive environments. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing and installation support.
Specifications
- Brand: LCN
- Model: 4040XP-HCUSH RH US10
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Certification: UL and cUL Listed, ANSI A156.4 Grade One
- Mount Options: Hinge side, top jamb, parallel arm
- Finish Options: Standard powder coat, optional plated finish, optional SRI primer
- Non-Handed: Fits right or left swinging doors
- Material: Cast iron, forged steel arm, double heat treated steel pinion
- Fluid Type: All weather
