Description

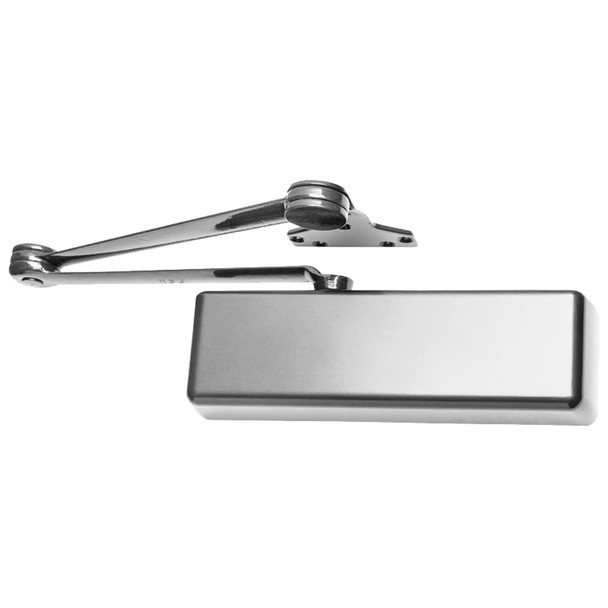

The LCN 4040XP-HEDA is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. It features 44% increased bearing load capacity, a reinforced 3/4" pinion journal, and LCN's enhanced V-shield seal for superior durability and 20% extended seal life. Built with cast iron, forged steel, and double heat-treated components, this closer delivers reliable performance in demanding applications.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configuration for right or left swing doors. It accommodates interior doors up to 5'0" and exterior doors to 4'0", and is fully ADA compliant. UL and cUL listed per ANSI A156.4 Grade One. Available finishes include standard powder coat, optional plating, and SRI primer for corrosive environments. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA RH US26D
- Type: Surface-Mounted Door Closer
- Handing: Non-Handed (Right or Left Swing)
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mount Positions: Hinge Side, Top Jamb, Parallel Arm
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Construction: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Sealing: V-shield Seal (20% Extended Life)
- Features: Power Adjust, Fast Installation, Non-Sized Cylinder
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Finish Options: Standard Powder Coat, Optional Plating, Optional SRI Primer
- Compatibility: All 4040 Accessories
