Description

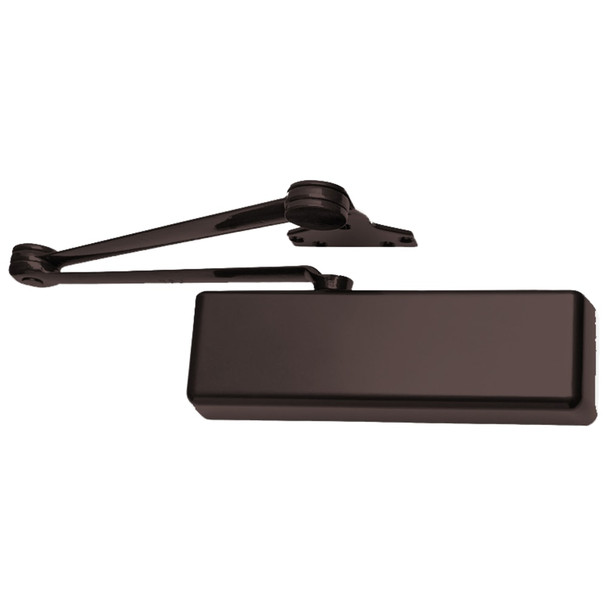

The LCN 4040XP-HEDA is a heavy-duty institutional surface door closer built for high-traffic, demanding environments. Featuring 44% increased bearing load capacity, a reinforced 3/4" pinion journal, and an advanced V-shield seal, it delivers superior durability and reliability for schools, hospitals, and commercial facilities requiring ADA compliance and long service life.
This right-hand, non-handed closer mounts on the hinge side, top jamb, or parallel arm and adjusts to doors up to 5'0" interior and 4'0" exterior. Cast iron and forged steel construction with double heat-treated pinion ensures performance in harsh conditions. UL/cUL listed and ANSI A156.4 Grade One certified. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and finish options including powder coat and corrosion-resistant primers.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA RH STAT MC
- Type: Surface Door Closer
- Handedness: Right Hand, Non-Handed Installation
- Bearing Load Capacity: 44% Increased
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Mounting Options: Hinge side, top jamb, parallel arm
- Door Size Range: Interior to 5'0", Exterior to 4'0"
- Fluid: All Weather
- Certifications: UL Listed, cUL Listed, ANSI A156.4 Grade One
- Construction: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Features: V-shield Seal (20% longer life), Fast Power Adjust, Fast & Accurate Installation
- Finish Options: Standard/custom powder coat, optional plated finish, optional SRI primer
- ADA Compliant: Yes
