Description

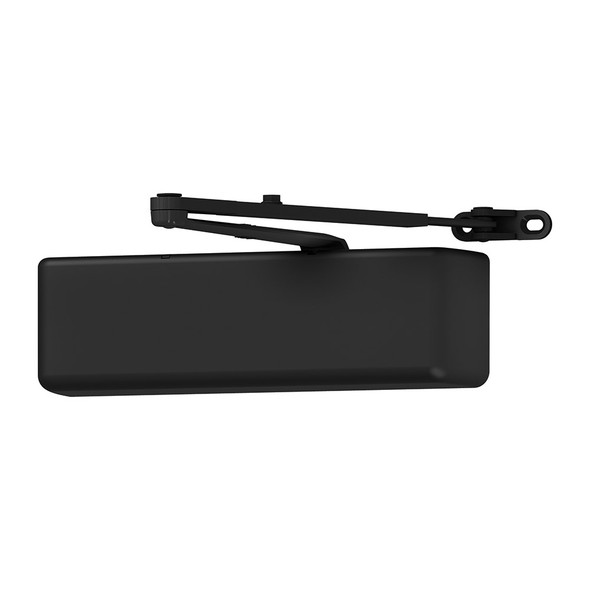

The LCN 4040XP-REG is a heavy-duty surface-mounted door closer engineered for institutional, commercial, and high-traffic environments. Its extra-protection design features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a reinforced V-shield seal for 20% longer life. It solves the durability challenge in demanding applications where standard closers fail.
This closer is non-handed and adjusts for interior doors to 5'0" and exterior doors to 4'0". It mounts on the hinge side, top jamb, or with a parallel arm bracket on either right or left swinging doors, and meets ADA requirements. UL and cUL listed under ANSI A156.4 Grade One. As an authorized LCN dealer, E.D. Locks offers expert installation guidance and custom finish options. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification assistance.
Specifications
- Brand: LCN
- Model: 4040XP-REG
- Handing: Right Hand
- Finish: RAL9003
- Bearing Load Capacity: 44% increase over standard
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mounting Options: Hinge side, top jamb, or parallel arm
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Features: V-shield seal, Fast Power Adjust, Fast & Accurate Installation
