Description

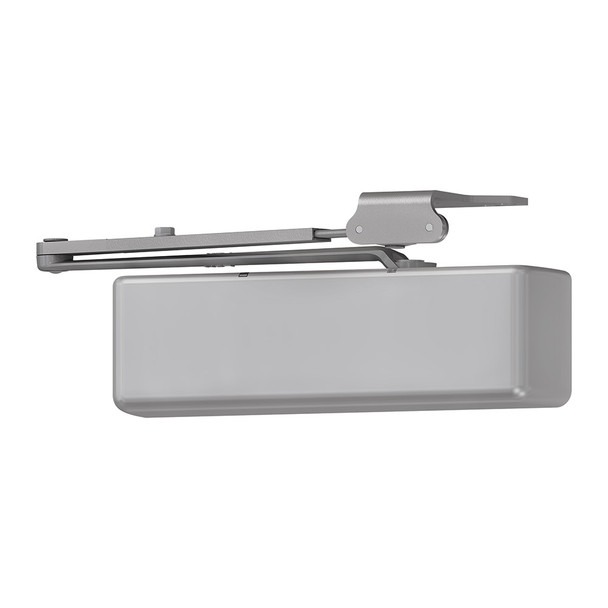

The LCN 4040XP is a heavy-duty surface-mounted door closer engineered for high-traffic institutional environments. Its reinforced pinion, expanded bearing capacity, and V-Shield seal deliver superior durability and longer service life, solving reliability issues in demanding commercial applications.
Compatible with interior doors to 5'0" and exterior doors to 4'0", this non-handed closer mounts on either right or left swinging doors via hinge side, top jamb, or parallel arm bracket. UL and cUL listed per ANSI A156.4 Grade One. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on finish options, installation, and ADA compliance.
Specifications
- Brand: LCN
- Model: 4040XP-RW/62A LH
- Type: Surface-Mounted Door Closer
- Door Size Range: Interior to 5'0", Exterior to 4'0"
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Construction: Cast Iron Body, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Sealing: V-Shield with Extended Life
- Handed: Non-Handed (Right or Left Swing)
- Mount Options: Hinge Side, Top Jamb, Parallel Arm
- Certification: UL and cUL Listed, ANSI A156.4 Grade One
- Finish Options: Standard Powder Coat, Optional Plated, Optional SRI Primer Available
- Features: Fast Power Adjust, Fast and Accurate Installation, ADA Compatible
