Description

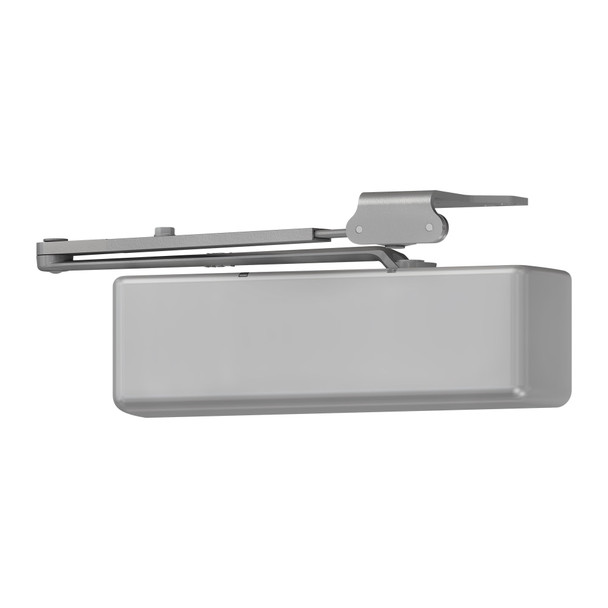

The LCN 4040XP-RW/62A is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. Its reinforced design features a 44% increased bearing load capacity, strongest pinion journal at 3/4" diameter, and V-shield seal technology with 20% longer life. This non-handed closer solves durability and performance demands where standard closers fall short.
Compatible with interior doors up to 5'0" and exterior doors up to 4'0", the 4040XP mounts on the hinge side, top jamb, or parallel arm configuration for either swinging direction. It meets ADA requirements and is UL/cUL listed under ANSI A156.4 Grade One. As an authorized LCN dealer, E.D. Locks offers expert guidance on sizing, finish options (standard/custom powder coat, plated, or SRI primer for corrosive environments), and installation. Contact sales@edlocks.com or 1-877-207-6067 for free technical support.
Specifications
- Brand: LCN
- Model: 4040XP-RW/62A
- Type: Surface-mounted door closer
- Interior door capacity: Up to 5'0"
- Exterior door capacity: Up to 4'0"
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather, non-hazardous
- Handing: Non-handed
- Mount options: Hinge side, top jamb, or parallel arm with bracket
- Features: Fast power adjust, fast installation, V-shield seal, LCN Fast technology
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA compliant: Yes
- Finish options: Standard powder coat, custom powder coat, optional plated finish, optional SRI primer
- Accessories: Compatible with all 4040 series accessories
