Description

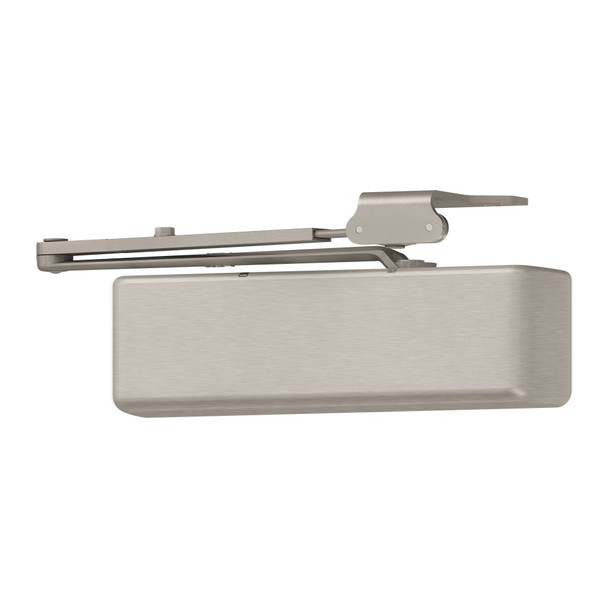

The LCN 4040XP is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. Its reinforced pinion, expanded bearing capacity, and V-shield seal deliver superior durability and reliability where standard closers fail, making it ideal for schools, hospitals, and commercial buildings.
This right-hand model installs on hinge-side, top jamb, or parallel arm positions and adjusts for interior doors to 5 feet and exterior doors to 4 feet. UL/cUL listed and ANSI A156.4 Grade 1 certified. As an authorized LCN dealer, E.D. Locks offers expert sizing and installation support at sales@edlocks.com or 1-877-207-6067 to ensure your closer meets ADA and code requirements.
Specifications
- Brand: LCN
- Model: 4040XP-RW/PA RH
- Finish: US15 (standard); optional powder coat, plated, or SRI primer
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Interior Door Adjustment Range: Up to 5 feet
- Exterior Door Adjustment Range: Up to 4 feet
- Mount Options: Hinge-side, top jamb, or parallel arm
- Certifications: UL, cUL, ANSI A156.4 Grade 1
- Handedness: Right-hand
- Material: Cast iron body, forged steel arm, double heat-treated pinion
- Fluid Type: All-weather
- Features: V-shield seal, LCN Fast power adjust, fast installation
