Description

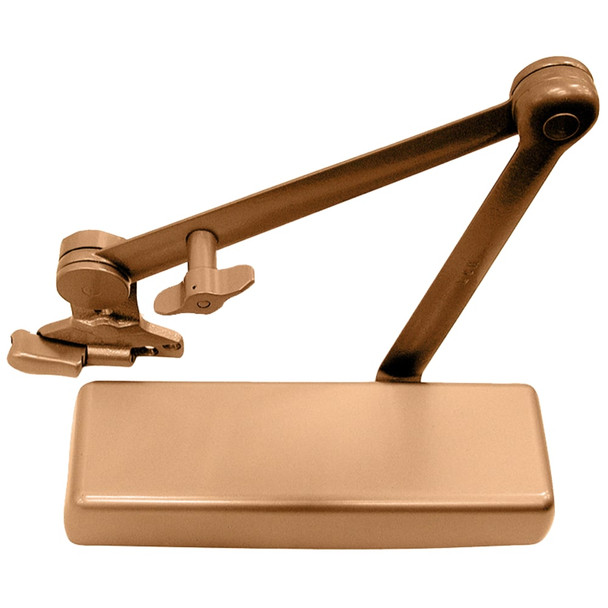

The LCN 4040XP is a heavy-duty surface-mounted door closer built for institutional and high-traffic environments. It features 44% increased bearing load capacity, a 3/4 inch journal pinion, and a V-Shield seal with extended life. Ideal for facilities requiring maximum durability and reliable performance in demanding applications.
This closer fits interior doors to 5 feet and exterior doors to 4 feet, and mounts on hinge side, top jamb, or parallel arm on either swinging direction. UL and cUL listed to ANSI A156.4 Grade One. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for sizing assistance, finish options, and expert installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-SHCUSH LH
- Handing: Left Hand
- Finish: US10 (Standard)
- Bearing Load Capacity: 44% increased
- Pinion Journal Diameter: 3/4 inch
- Bearing Width: 5/8 inch
- Interior Door Height: Up to 5 feet 0 inches
- Exterior Door Height: Up to 4 feet 0 inches
- Mount Options: Hinge side, top jamb, or parallel arm
- Certifications: UL, cUL, ANSI A156.4 Grade One
- Seal: V-Shield with 20% longer life
- Material: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid: All Weather
- Handed: Non-handed cylinder
- Features: LCN Fast Power Adjust, fast and accurate installation
