Description

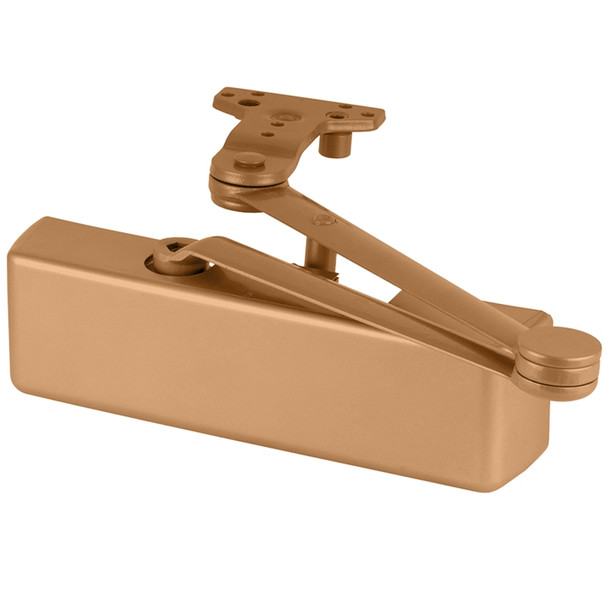

The LCN 4040XP-HCUSH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It delivers 44% increased bearing load capacity, a 3/4" journal pinion, and an advanced V-shield seal with 20% longer life, solving durability challenges in demanding commercial applications.
This left-hand closer mounts on hinge side, top jamb, or parallel arm and adjusts for interior doors to 5'0" and exterior doors to 4'0". It's UL and cUL listed under ANSI A156.4 grade one, with optional powder coat and plated finishes available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing, finish selection, and installation guidance.
Specifications
- Brand: LCN
- Model: 4040XP-HCUSH LH
- Finish: US10 (Standard); Optional powder coat and plated finishes
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Mount Options: Hinge side, top jamb, or parallel arm
- Hand: Left Hand (LH)
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Seal Technology: V-shield with 20% extended life
- Installation: Fast Power Adjust, Fast & Accurate Installation
