Description

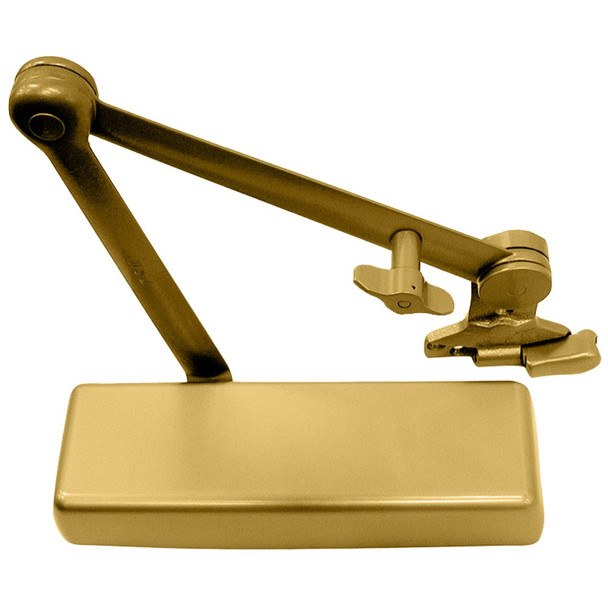

The LCN 4040XP is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial facilities. With 44% increased bearing load capacity, a reinforced 3/4" journal pinion, and an improved V-shield seal, it delivers superior durability and reliability where doors endure constant use and demanding conditions.
This non-handed closer installs on hinge-side, top-jamb, or parallel-arm configurations for both interior (up to 5'0") and exterior (up to 4'0") doors, and meets ADA requirements. It is UL and cUL listed under ANSI A156.4 Grade One. As an authorized LCN dealer, E.D. Locks offers expert sizing guidance, finish options including powder coat and plating, and corrosion-resistant primers. Contact our specialists at sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: LCN
- Model: 4040XP-SHCUSH RH
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Door Width Range: Interior up to 5'0", Exterior up to 4'0"
- Material: Cast iron body, forged steel arm, double heat-treated steel pinion
- Mounting: Hinge-side, top-jamb, or parallel-arm (with PA bracket)
- Handedness: Non-handed
- Fluid: All-weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Features: V-shield seal, LCN Fast power adjust, fast and accurate installation
- Finish Options: Standard or custom powder coat, optional plated finish, optional SRI primer for corrosive environments
- Compatibility: Compatible with all 4040 accessories
