Description

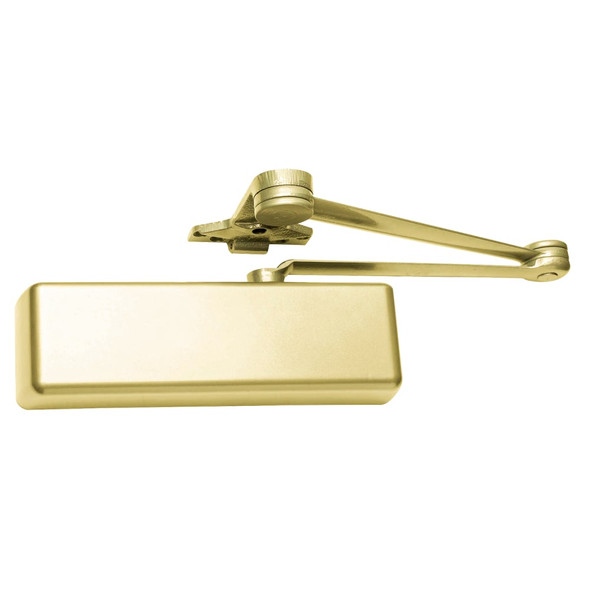

The LCN 4040XP-SCUSH RH is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic facilities. With 44% increased bearing load capacity, a 3/4 inch journal diameter pinion, and reinforced steel components, it delivers superior durability and reliability where standard closers fall short. The V-shield seal extends life by 20% in demanding environments.
This non-handed closer mounts on hinge side, top jamb, or parallel arm positions for right or left swinging doors, accommodating interior openings to 5 feet and exterior doors to 4 feet. Fast Power Adjust technology speeds installation and tuning. As an authorized LCN dealer, E.D. Locks provides expert configuration guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper setup for your application.
Specifications
- Model: 4040XP-SCUSH RH US4
- Brand: LCN
- Type: Surface-mounted door closer
- Pinion journal diameter: 3/4 inch
- Bearing width: 5/8 inch
- Door capacity: Interior up to 5 feet, exterior up to 4 feet
- Mounting options: Hinge side, top jamb, or parallel arm
- Hand: Right hand (non-handed mechanism)
- Finish options: Standard powder coat, optional plated finish, optional SRI primer for corrosive conditions
- Material construction: Cast iron, forged steel arm, double heat-treated steel pinion
- Fluid type: All-weather
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Features: V-shield seal, Fast Power Adjust, Fast & Accurate Installation
- Accessories compatible: All 4040 accessories
