Description

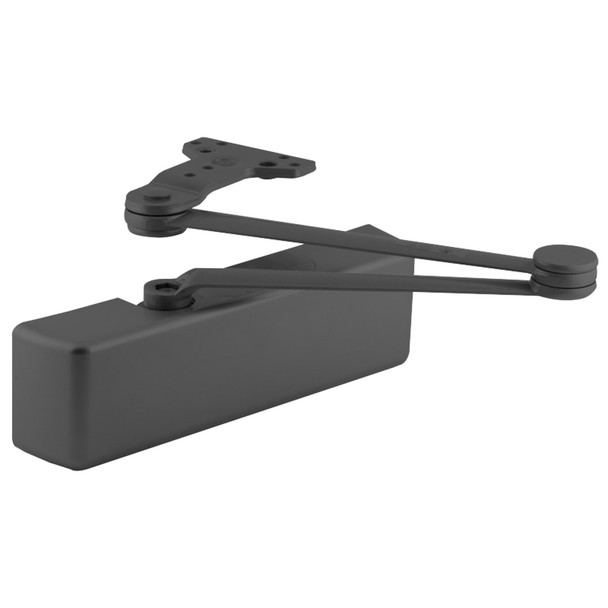

The LCN 4041DEL-CUSH is a heavy-duty surface-mounted door closer engineered for high-traffic institutional settings, healthcare facilities, and demanding commercial environments. It delivers superior durability with a 44% increased bearing load capacity, strongest pinion design, and enhanced V-shield seals that extend seal life by 20%, solving reliability and maintenance challenges in round-the-clock operations.
This non-handed closer mounts on hinge-side, top-jamb, or parallel-arm configurations for doors up to 5'0" interior or 4'0" exterior. It adjusts without sizing the cylinder and meets ADA requirements. UL and cUL listed, it's compatible with all 4040 series accessories and available in standard powder coat, optional plated finishes, or corrosion-resistant SRI primer. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and finish customization.
Specifications
- Brand: LCN
- Model: 4041DEL-CUSH
- Finish: Black (standard powder coat)
- Bearing Load Capacity: 44% increased vs. standard
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal Type: V-shield, 20% longer life
- Interior Door Max Height: 5'0"
- Exterior Door Max Height: 4'0"
- Non-Handed: Yes
- Mount Options: Hinge-side, top-jamb, parallel-arm
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- Material: Cast iron body, forged steel arm, double heat-treated pinion
- Fluid: All-weather, non-handed
- Accessories: Compatible with all 4040 series accessories
- Optional Finishes: Plated metal cover/arm/fasteners, SRI primer for corrosive environments
