Description

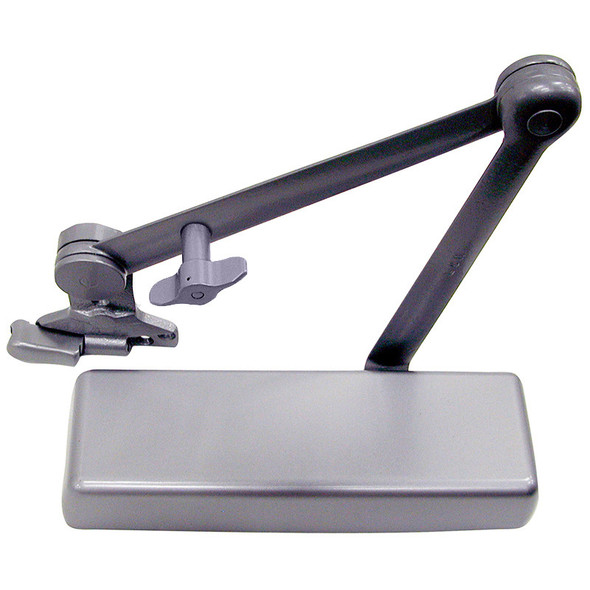

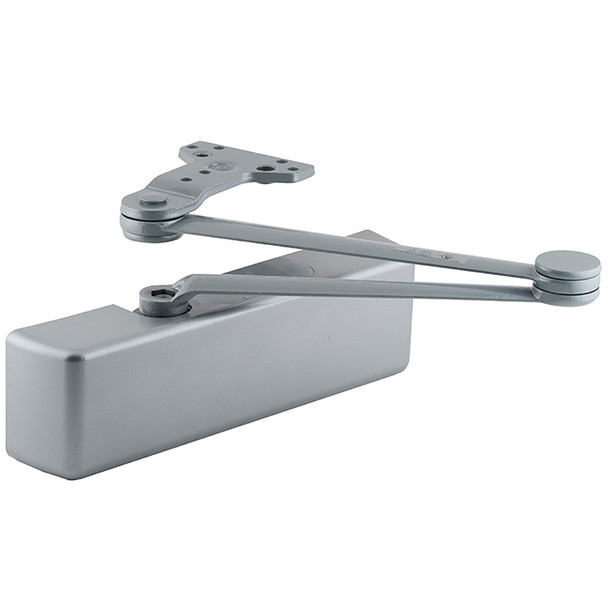

The LCN 4041DEL-CUSH AL is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It features 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and an advanced V-shield seal with 20% longer life. Perfect for facilities requiring maximum durability and reliable performance.
This non-handed closer mounts on hinge side, top jamb, or parallel arm configuration for either right or left swinging doors, with adjustment range up to 5'0" interior and 4'0" exterior. UL and cUL listed per ANSI A156.4 grade one. Our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 provide free compatibility assessment and installation guidance to ensure proper setup.
Specifications
- Brand: LCN
- Model: 4041DEL-CUSH AL
- Bearing Load: 44% increased capacity
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Adjustment Range: Interior doors to 5'0", exterior doors to 4'0"
- Mounting Options: Hinge side, top jamb, parallel arm
- Hand: Non-handed (right or left swinging)
- Seal: V-shield with 20% longer life
- Fluid: All weather
- Components: Cast iron, forged steel arm, double heat treated steel pinion
- Certifications: UL and cUL listed, ANSI A156.4 grade one
- Finish Options: Standard or custom powder coat, optional plated finish, optional SRI primer for corrosive conditions
