Description

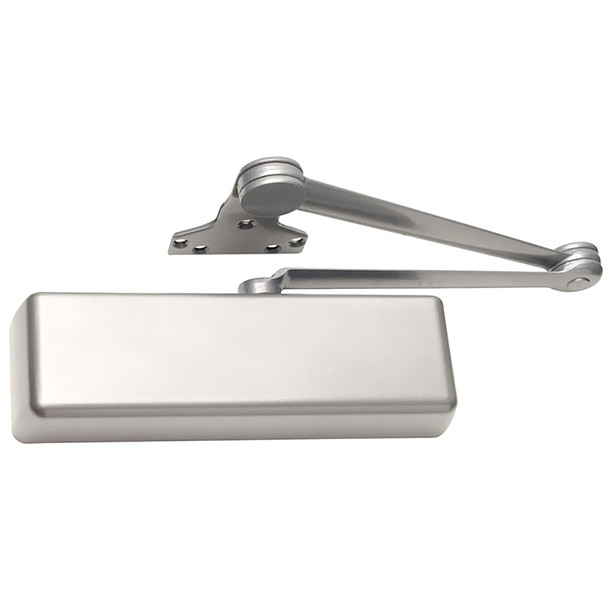

The LCN 4041DEL-EDA 689 is a heavy-duty surface-mounted door closer engineered for high-traffic institutional, commercial, and demanding environments. It delivers superior durability with a 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and the widest bearing at 5/8". The V-shield seal extends life by 20%, while cast iron construction and double heat-treated steel ensure reliable performance in all weather conditions.
This non-handed closer installs on hinge side, top jamb, or with an optional parallel arm bracket, fitting interior doors to 5'0" and exterior doors to 4'0". It meets ADA requirements and holds UL and cUL listings under ANSI A156.4 grade one. Choose from standard powder coat, optional plated finishes, or SRI primer for corrosive environments. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and authorized dealer support.
Specifications
- Brand: LCN
- Model: 4041DEL-EDA 689
- Type: Surface Mounted Door Closer
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Bearing Load Capacity: 44% increase vs. standard
- Seal Type: V-shield (20% extended life)
- Construction: Cast Iron, Forged Steel Arm, Double Heat Treated Steel Pinion
- Fluid: All Weather
- Handed: Non-Handed
- Mount Options: Hinge Side, Top Jamb, Parallel Arm (with bracket)
- Certifications: UL and cUL Listed
- Standard Compliance: ANSI A156.4 Grade One
- ADA Compliant: Yes
- Finish Options: Standard Powder Coat, Optional Plated Finish, Optional SRI Primer for Corrosive Conditions
- Features: Fast Power Adjust, Fast and Accurate Installation
