Description

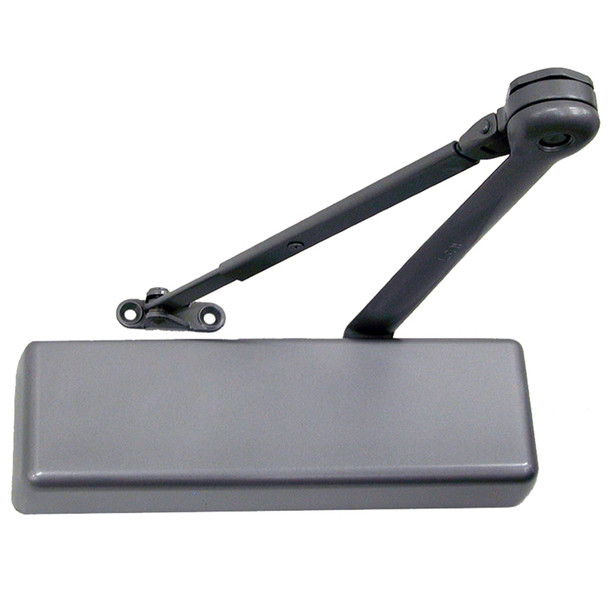

The LCN 4041DEL-H 689 is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. It features 44% increased bearing load capacity, a 3/4" journal pinion, and V-shield seals with extended life. This non-handed closer delivers reliable self-closing performance on doors up to 5'0" interior and 4'0" exterior.
The 4041DEL-H mounts on the hinge side, top jamb, or parallel arm configuration for either right or left swinging doors. It is UL and cUL listed, ANSI A156.4 Grade One certified, and available in standard or custom powder coat finishes, with optional plating and SRI primer for corrosive environments. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert assistance with specification and installation guidance.
Specifications
- Brand: LCN
- Model: 4041DEL-H 689
- Type: Surface-mounted door closer
- Bearing load capacity: 44% increased
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- V-shield seal life: 20% longer
- Interior door capacity: up to 5'0"
- Exterior door capacity: up to 4'0"
- Mounting: Hinge side, top jamb, or parallel arm
- Handed: Non-handed
- Fluid type: All weather
- Finish options: Standard or custom powder coat, optional plating, optional SRI primer
- Certifications: UL, cUL listed; ANSI A156.4 Grade One
- Materials: Cast iron, forged steel arm, double heat-treated steel pinion
