Description

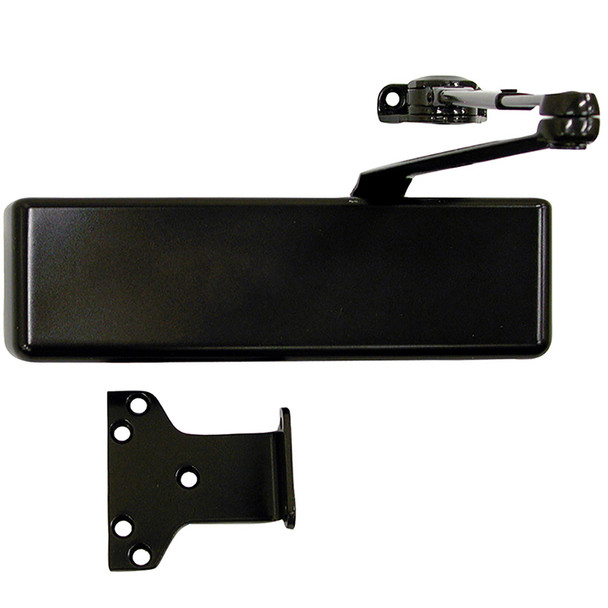

The LCN 4041DEL is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic commercial environments. With 44% increased bearing load capacity, a reinforced 3/4" pinion journal, and the advanced V-shield seal system, it delivers superior durability and reliability where doors face constant use and demanding conditions.
This closer accommodates interior doors up to 5'0" and exterior doors up to 4'0", mounting on hinge side, top jamb, or parallel arm configurations for either swinging direction. It's UL and cUL listed, ANSI A156.4 Grade One certified, and non-handed for flexible installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, finish options, and compatibility with your specific door setup.
Specifications
- Brand: LCN
- Model: 4041DEL-HW/PA
- Finish: Dark Bronze (DKBRZ)
- Interior door capacity: up to 5'0"
- Exterior door capacity: up to 4'0"
- Pinion journal diameter: 3/4"
- Bearing width: 5/8"
- Mount locations: Hinge side, top jamb, or parallel arm
- Hand: Non-handed
- Certifications: UL, cUL listed; ANSI A156.4 Grade One
- Construction: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Features: V-shield seal, Fast Power Adjust, fast and accurate installation
- Optional finishes: Custom powder coat, plated finish on metal components
- Optional: SRI primer for corrosive environments (powder coat only)
