Description

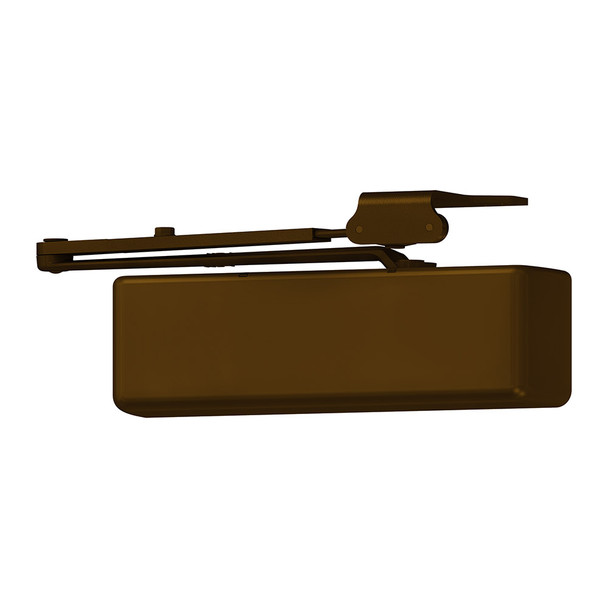

The LCN 4041DEL-RW/PA is a heavy-duty surface-mounted door closer engineered for high-traffic institutional and commercial environments. Its reinforced design features a 3/4" forged steel pinion, 5/8" bearing width, and cast iron body to deliver 44% increased load capacity and superior durability in demanding applications.
This non-handed closer accommodates doors up to 5'0" (interior) and 4'0" (exterior), and mounts on the hinge side, top jamb, or parallel arm position for flexible installation. UL/cUL listed and ANSI A156.4 Grade 1 certified, it includes the V-shield seal and all-weather fluid. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for sizing assistance and finish options including optional plating or SRI primer for corrosive environments.
Specifications
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Interior Door Range: Up to 5'0"
- Exterior Door Range: Up to 4'0"
- Finish: Dark Bronze (powder coat standard)
- Certification: UL/cUL Listed, ANSI A156.4 Grade 1
- Non-Handed: Yes
- Mount Positions: Hinge side, top jamb, parallel arm
- Fluid Type: All-weather
- V-Shield Seal: 20% longer life
