Description

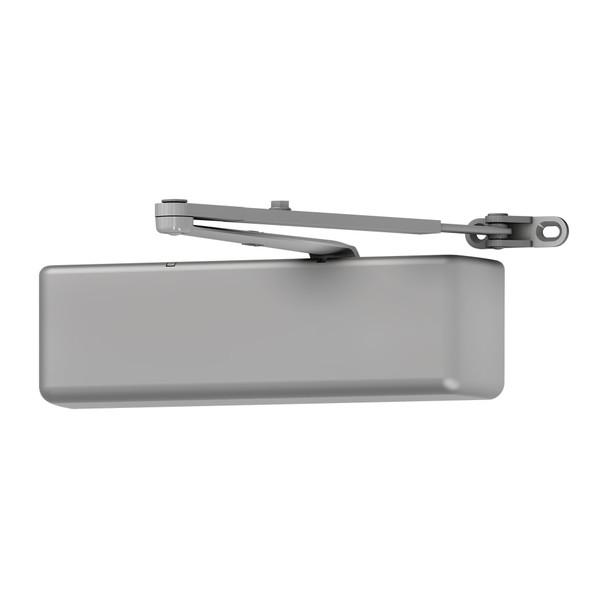

The LCN 4041DEL-REG is a heavy-duty surface-mounted door closer engineered for institutional and high-traffic environments. It features a 44% increased bearing load capacity, the strongest pinion ever at 3/4" journal diameter, and a new V-shield seal with 20% longer life. This non-handed closer delivers reliable, consistent door closing performance in demanding applications.
The 4041DEL-REG mounts on the hinge side, top jamb, or parallel arm configuration on either right or left swinging doors. The non-sized cylinder adjusts for interior doors to 5'0" and exterior doors to 4'0". UL and cUL listed to ANSI A156.4 Grade One, it meets ADA requirements. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, mounting, and finish options including SRI primer for corrosive environments.
Specifications
- Brand: LCN
- Model: 4041DEL-REG
- Finish: AL SRI (Aluminum with SRI primer)
- Bearing Load Capacity: 44% increased
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Seal: V-shield with 20% longer life
- Interior Door Range: up to 5'0"
- Exterior Door Range: up to 4'0"
- Mounting: Hinge side, top jamb, or parallel arm
- Handed: Non-handed
- Certifications: UL and cUL listed, ANSI A156.4 Grade One
- ADA Compliant: Yes
