Description

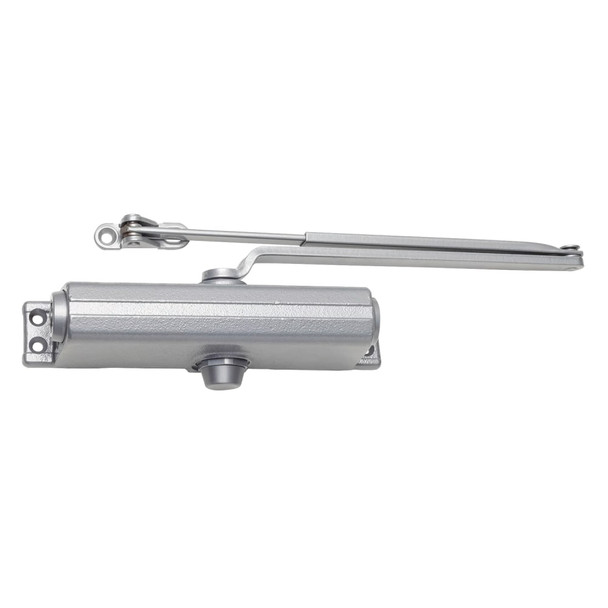

The LCN 1261-RW/PA is a light to medium duty Grade 1 cast iron surface closer engineered for commercial doors. Its adjustable spring (sizes 1-5) and non-handed design solve installation headaches for facility managers and contractors maintaining high-traffic building entries.
This closer fits the standard 3/4" x 9-1/16" commercial footprint and handles interior doors up to 4'6" and exterior doors up to 3'6". It includes a regular arm, shaft cover, and fasteners. The AL finish with optional SRI primer protects against corrosive environments. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for custom finishes, Quick Fix brackets, and expert installation guidance.
Specifications
- Brand: LCN
- Model: 1261-RW/PA AL SRI
- Duty Grade: Grade 1
- Material: Cast Iron
- Spring Sizes: 1-5 Adjustable
- Piston Diameter: 1-3/8 In.
- Pinion Journal: 5/8 In. diameter, single heat treated
- Mounting Pattern: 3/4" x 9-1/16"
- Interior Door Capacity: Up to 4'6"
- Exterior Door Capacity: Up to 3'6"
- Design: Non-handed
- Finish: AL with optional SRI primer
- Includes: Regular arm, shaft cover, self-reaming and tapping screws
- ADA Compliant: Yes
