Description

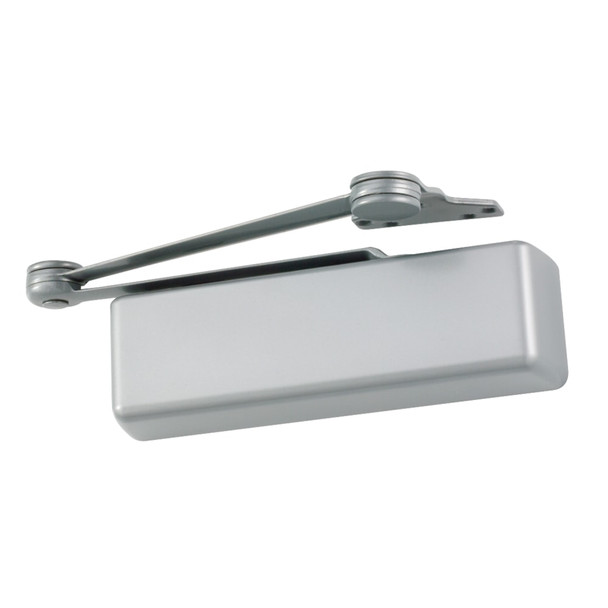

The LCN 4111-HEDA is a heavy-duty door closer engineered for high-traffic commercial and institutional environments. It features an adjustable spring mechanism with hold-open capability beyond 140 degrees, meeting ADA requirements. The cast iron body and all-weather fluid deliver reliable performance in demanding applications, backed by a 30-year warranty.
This right-hand closer accommodates interior doors up to 5'0" and exterior doors up to 4'0" with standard sizing. Available finishes include powder coat, optional plated metal components, and SRI primer for corrosive environments. Installation includes parallel arm mounting with fifth screw spacer and self-reaming fasteners. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for application guidance and finish specifications.
Specifications
- Model: 4111-HEDA RH AL SRI
- Arm Type: Parallel, Right Hand
- Interior Door Size: Up to 5'0"
- Exterior Door Size: Up to 4'0"
- Hold Open: Beyond 140 degrees
- ADA Compliant: Yes
- Warranty: 30 years
- UL and cUL Listed: Yes
- ANSI Standard: A156.4, Grade One
- Body Material: Cast iron
- Available Finishes: Powder coat, plated, SRI primer
