Description

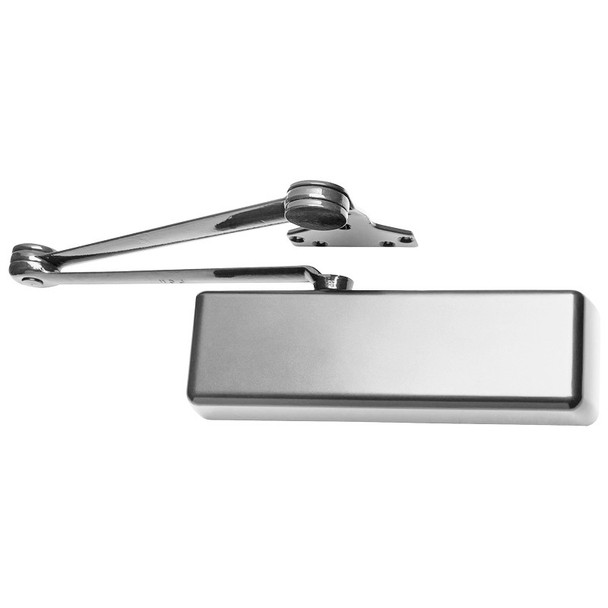

The LCN 4040XP-HEDA is a heavy-duty, non-handed door closer built for institutional and high-traffic environments. With a 44% increased bearing load capacity, 3/4" journal diameter pinion, and V-shield seal technology, it delivers superior durability and 20% longer seal life. UL and cUL listed, it installs on hinge side, top jamb, or parallel arm configurations for both right and left swinging doors up to 5 feet.
This closer mounts on interior doors to 5'0" and exterior doors to 4'0" with adjustable, non-sized cylinders. Right-hand aluminum finish with SRI primer coating resists corrosive conditions. All 4040 accessories are compatible. As an authorized LCN dealer, E.D. Locks provides expert sizing and installation support at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance.
Specifications
- Brand: LCN
- Model: 4040XP-HEDA RH 689 SRI
- Pinion Journal Diameter: 3/4"
- Bearing Width: 5/8"
- Max Interior Door Height: 5'0"
- Max Exterior Door Height: 4'0"
- Finish: Aluminum with SRI Primer
- Mount Options: Hinge side, top jamb, parallel arm
- Handed: Non-handed (right or left swing)
- Certifications: UL and cUL Listed, ANSI A156.4 Grade One
- Seal Technology: V-shield with extended life
- Material: Cast iron body, forged steel arm, double heat-treated steel pinion
- Fluid: All-weather
- Power Adjustment: LCN Fast Power Adjust
