Description

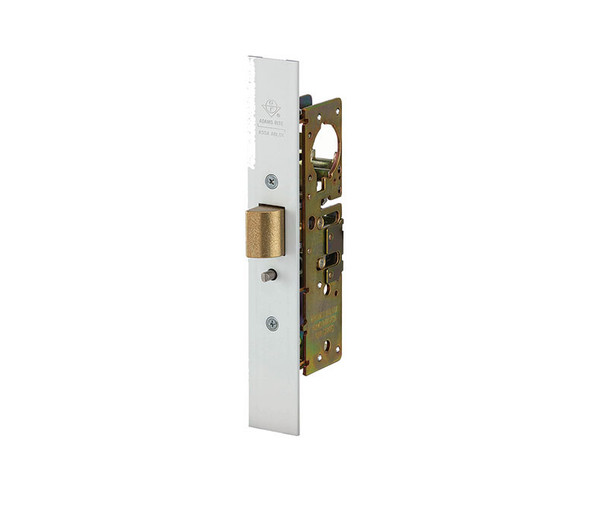

The Adams Rite 4920AN is a heavy-duty mortise deadlatch for hollow metal or wood doors requiring precise traffic control and security. It features a key-controlled bolt hold-back that lets doors free-swing during business hours, then lock down when needed. Perfect for commercial entrances, retail spaces, and secured facilities that need flexible access control without door modification.
The 4920AN works with any standard 1-5/32 inch mortise cylinder with MS cam and accepts 1-1/2 inch or 2-3/4 inch backsets. It includes a strike, faceplate, and mounting screws. As an authorized Adams Rite dealer, E.D. Locks offers expert installation guidance and compatibility support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for help selecting the right backset, finish, and cylinder for your door prep.
Specifications
- Brand: Adams Rite
- Model: 4920AN-45-000-335
- Type: Mortise Deadlatch
- Backset: 1-1/2 inch or 2-3/4 inch
- Case: Steel, corrosion-resistant plating, 7/8 inch x 5-13/16 inch
- Latchbolt: Solid brass, 5/8 inch x 1 inch x 5/8 inch throw
- Auxiliary Latchpin: Stainless steel anti-loiding feature
- Faceplate: Armored flat, 1-1/4 inch x 8 inch, adjustable for beveled doors
- Strike: 4506-02 stainless steel, ANSI flat jamb preparation
- Cylinder: Standard 1-5/32 inch mortise cylinder with MS cam
- Reversible Handing: Screwdriver adjustment
- Finish: US32D Satin
