Description

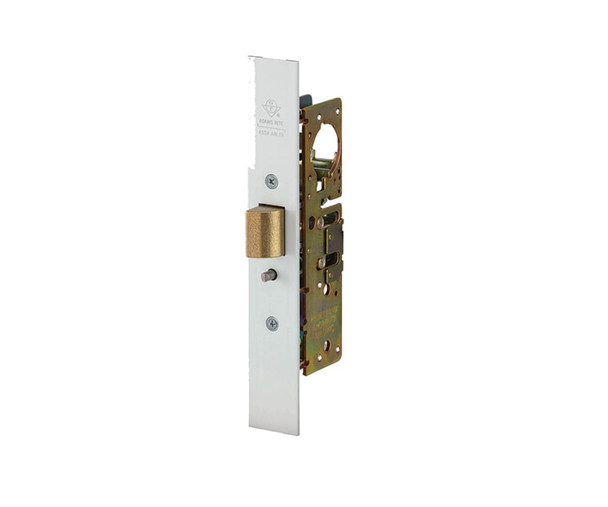

The Adams Rite 4920AN is a heavy-duty mortise deadlatch designed for hollow metal or wood doors requiring precise traffic control and security. It features a key-controlled bolt hold-back function that allows doors to free-swing during business hours and exit-only when the bolt latches, solving the challenge of securing entrances while maintaining emergency egress. Ideal for commercial facilities, retail, and institutional buildings.
This lock accepts any standard 1-5/32 inch diameter mortise cylinder with MS cam and is interchangeable with MS1850SN deadlocks of matching faceplate and backset without door modification. The 4506-02 strike is included for ANSI flat-jamb preparation. As an authorized Adams Rite dealer, E.D. Locks offers expert guidance on backset selection, finish options, and installation. Contact sales@edlocks.com or 1-877-207-6067 for technical support and free shipping on orders over $450.
Specifications
- Brand: Adams Rite
- Model: 4920AN-56-000-628
- Type: Heavy-Duty Mortise Deadlatch
- Backset Options: 1-1/2 inch or 2-3/4 inch
- Case: 7/8 inch x 5-13/16 inch, steel with corrosion-resistant plating
- Latchbolt: 5/8 inch x 1 inch x 5/8 inch throw, solid brass
- Faceplate: 1-1/4 inch x 8 inch armored flat, field-adjustable for beveled doors
- Auxiliary Latchpin: Stainless steel
- Strike: 4506-02 stainless steel, US32D satin finish (630)
- Cylinder: Compatible with standard mortise cylinders, MS cam
- Reversible Handing: Tool-free with screwdriver
