Description

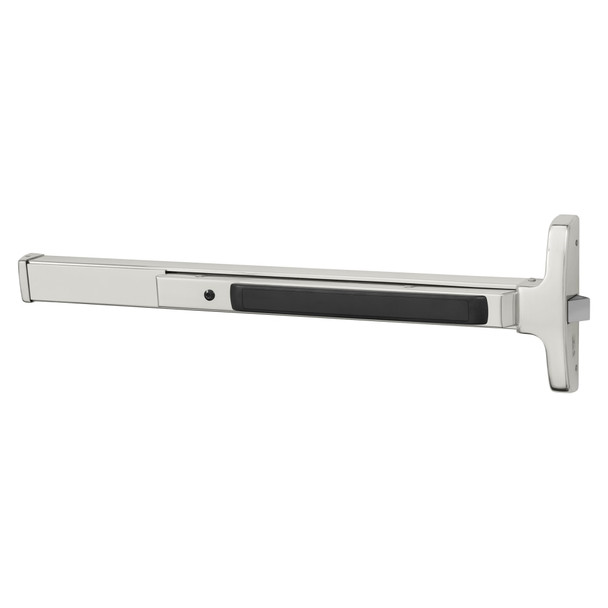

The Sargent 80 Series rim exit device is engineered for high-security applications in commercial buildings. Designed for wood or metal doors 1 3/4" thick, this Grade 1 certified device combines durable modular construction with minimal moving parts, ensuring maintenance-free operation and reliable security for the life of your building.
The 56-8504F 32 fits doors 24" to 32" wide without cutting required for standard 32" openings. Optional configurations include delayed egress, alarmed exit, and electric latch retraction for specialized needs. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on installation, keying, and compatibility with your specific door assembly.
Specifications
- Series: 80 Series
- Configuration: Rim
- Door Thickness: 1 3/4" (44mm)
- Door Width Range (E Rail): 24" to 32" (61cm to 81cm)
- Standard Fit: 32" door, no cutting required
- Minimum Stile Width: 1 3/4" (44mm)
- Certifications: ANSI/BHMA Grade 1
- Door Types: Wood or metal
