Description

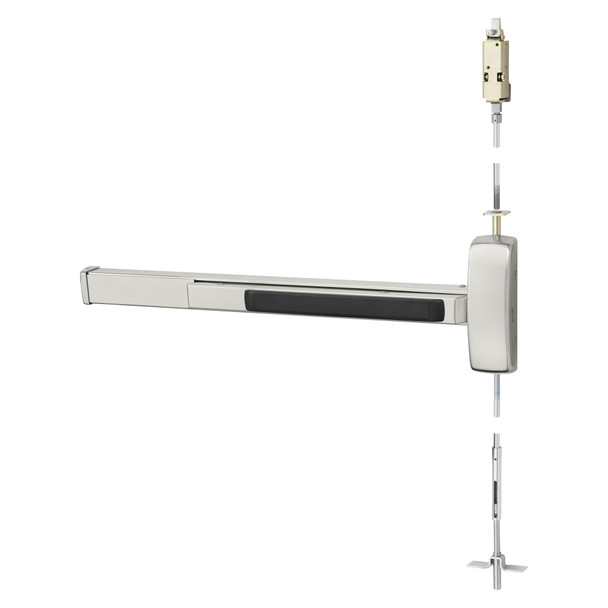

The Sargent 80 Series exit device is a heavy-duty panic hardware solution designed for commercial buildings requiring ANSI/BHMA Grade 1 certified security and durability. Built with modular construction and minimal moving parts, it provides maintenance-free operation and exceeds industry strength standards for rim, mortise, and vertical rod applications across metal doors.
This model fits doors 1 3/4" to 2 1/4" thick with rail options for 24" to 48" door widths and features optional delayed egress, alarm, and electric latch retraction capabilities. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration, strike selection, and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical assistance and volume pricing.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Type: Metal doors, 1 3/4" to 2 1/4" thick
- Minimum Stile Width: 4 1/2"
- Available Rail Sizes: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Strikes: 650 Top, 606 Bottom (panic and fire-rated)
- Device Centerline: 41" standard, 38" for accessible applications
- Center Case: 8 3/8" x 2 5/8"
- Pushbar Projection: 3" neutral, 2 1/8" depressed
- Max Door Height: 96"
- Dogging: Hex key standard; cylinder dogging available
- Electric Options: Alarm, beacon, photoluminescent, illuminated touchpad, latch monitoring, delay egress, electric dogging
