Description

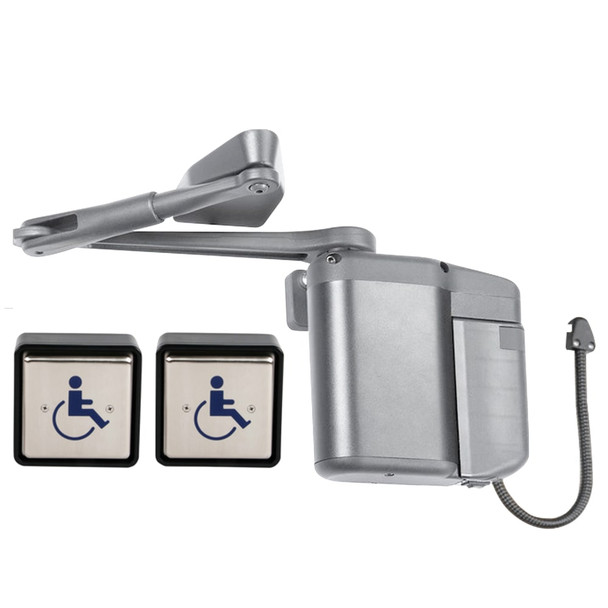

The Norton 5845xSQPB 689 is a regenerative-power ADA-compliant door operator for facilities requiring accessible, code-compliant automatic entry. Ideal for healthcare, retail, and public buildings, this wireless unit eliminates manual door operation challenges and reduces energy costs by up to 100 percent compared to standard operators.
Compatible with doors up to 48 inches wide and 250 pounds, the 5845xSQPB features adjustable opening and closing forces meeting ANSI A156.19 and ADA standards. Installation is straightforward with included wireless push-button transmitters. As an authorized Norton dealer, E.D. Locks provides expert configuration support at sales@edlocks.com or 1-877-207-6067 to ensure your operator meets local accessibility requirements.
Specifications
- Maximum door width: 48 inches
- Maximum door weight: 250 pounds
- Operating temperature range: -40 degrees F and above
- Cycle rating: 1,000,000 automatic cycles
- Warranty: 2 years
- Transmitters: Two stainless steel wireless push buttons, 1-3/4 inch x 4-3/4 inch, jamb mounted
- Standards: ANSI A156.19, ANSI 117.1, ADA compliant
- Power system: Regenerative battery charging on manual opening
