Description

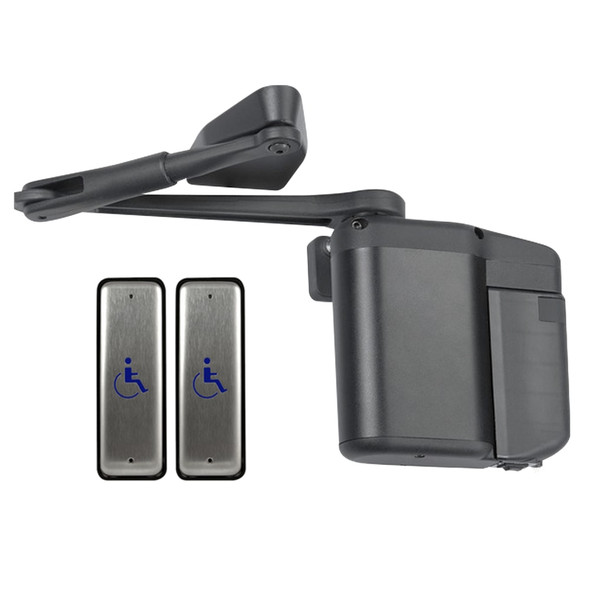

The Norton 5831XNPB 689 ADAEZ Series is a regenerative power door operator designed for ADA-compliant facilities seeking energy-efficient automatic door control. This wireless operator reduces energy consumption by up to 100 percent compared to standard operators, making it ideal for high-traffic commercial and institutional buildings. It fits in tight spaces and requires no external electrical power thanks to its innovative regenerative drive system.
The 5831XNPB fits doors up to 48 inches wide weighing up to 250 pounds and complies with ANSI A156.19 and ADA standards. Installation is straightforward, with adjustable opening and closing forces, speed settings, and hold-open time. As an authorized Norton dealer, E.D. Locks provides expert guidance on setup and configuration. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Model: 5831XNPB 689
- Series: ADAEZ Regenerative Power
- Configuration: Wireless with two stainless steel push button transmitters
- Door Width Capacity: Up to 48 inches
- Door Weight Capacity: Up to 250 pounds
- Push Button Size: 1-3/4 inch x 4-3/4 inch jamb-mounted
- Output Shaft: Triangular hardened steel with two-piece tapered coupling
- Arm Material: Heavy duty cast aluminum shock-absorbing
- Operating Temperature Range: -40 degrees F and above
- Cycle Rating: 1,000,000 automatic cycles tested
- Warranty: Two years
- Standards Compliance: ANSI A156.19, ANSI 117.1, ADA
- Features: Regenerative battery charging, on-board diagnostics, weather-resistant electronics, manual clutch mechanism, obstruction detection
